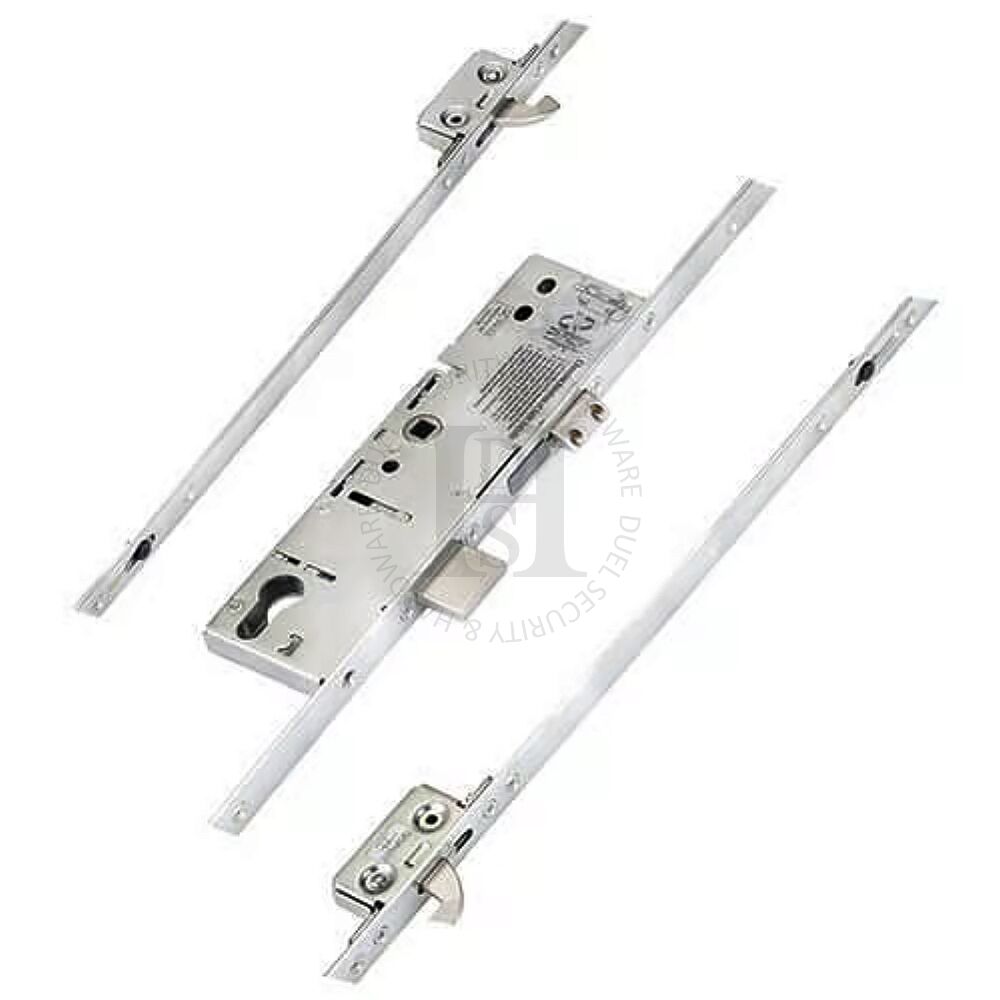

534580L Multipoint Lock 45mm Backset - Square End

ERA 1 piece, latch, deadbotl and 2 hooks

Specification

• Operation: Lift lever or split spindle nightlatch

Additional Information

• These locks are available in two options with differnt overall lengths and faceplates. Refer to Length and faceplate information in versions available below
• Distance between the hooks - 1430mm

Latch Reversal

• Undo screw in latch bolt and twist latch

Nightlatch Function Reversal Information

• Remove latch to reveal a small screw, use a small flat bladed screwdriverto turn screw 180°

Versions Available

• 534580L - 45mm Backset - 92mm Centres - Flat 20mm Square End Faceplate - 8mm Split Spindle -     2100mm Length
• 534581L - 45mm Backset - 92mm Centres - Flat 20mm Round End Faceplate - 8mm Split Spindle -     1570mm Length
