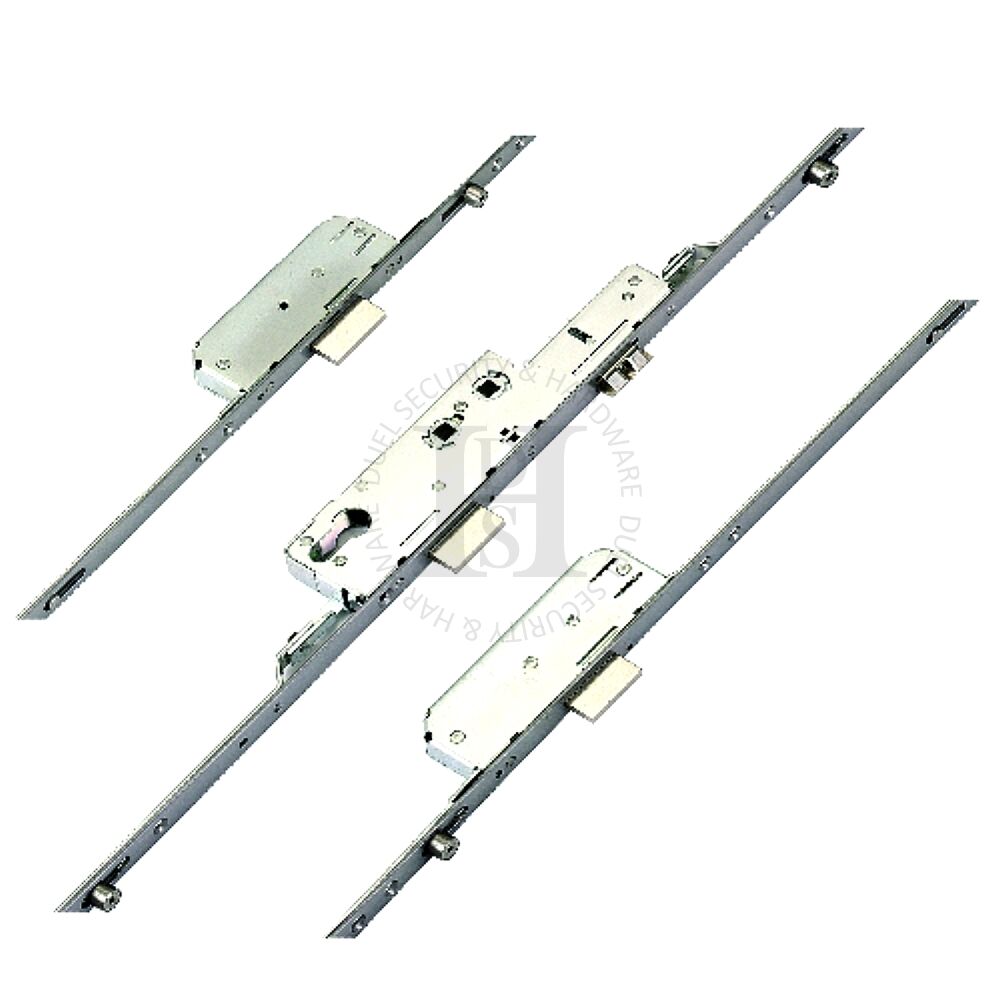

Avocet KMB353DB 2 Deadbolts 4 Rollers Multipoint Lock Mechanism Silver Version

Availability: In stock

£68.02
  • Buy 5 for £54.42 each and save 20%

Details

This high security Avocet KMB353DB multipoint lock with 2 deadbolts and 4 rollers for excellent weather protection.

Gearboxes are tested to 100,000 operations.

Additional Information

Technical Description

Sizes

  • Backset - 35mm
  • Case depth - 218mm
  • Case depth - Backset + 15mm
  • Overall length - 1920mm
  • Distance between outer rollers - 1590mm
  • Distance between inner rollers - 380mm
  • Distance between inner hooks - 747mm

Operation

  • Lift lever or double spindle night latch
  • Depending on date of manufacture either:Undo hexagonal screw on side of lock case to remove latch. Reverse, reinsert and replace screwUndo screw in centre of latch, reverse, reinsert and replace screw

Notes

  • Avocetlocks were previously known as KMB or WMS
  • KMB/WMS multipoint locks have no markings on faceplate
  • Original designs did not have a small compensator box underneath the top deadbolt
SKU AVO-KMB353DB
Barcode N/A
Brand AVOCET
