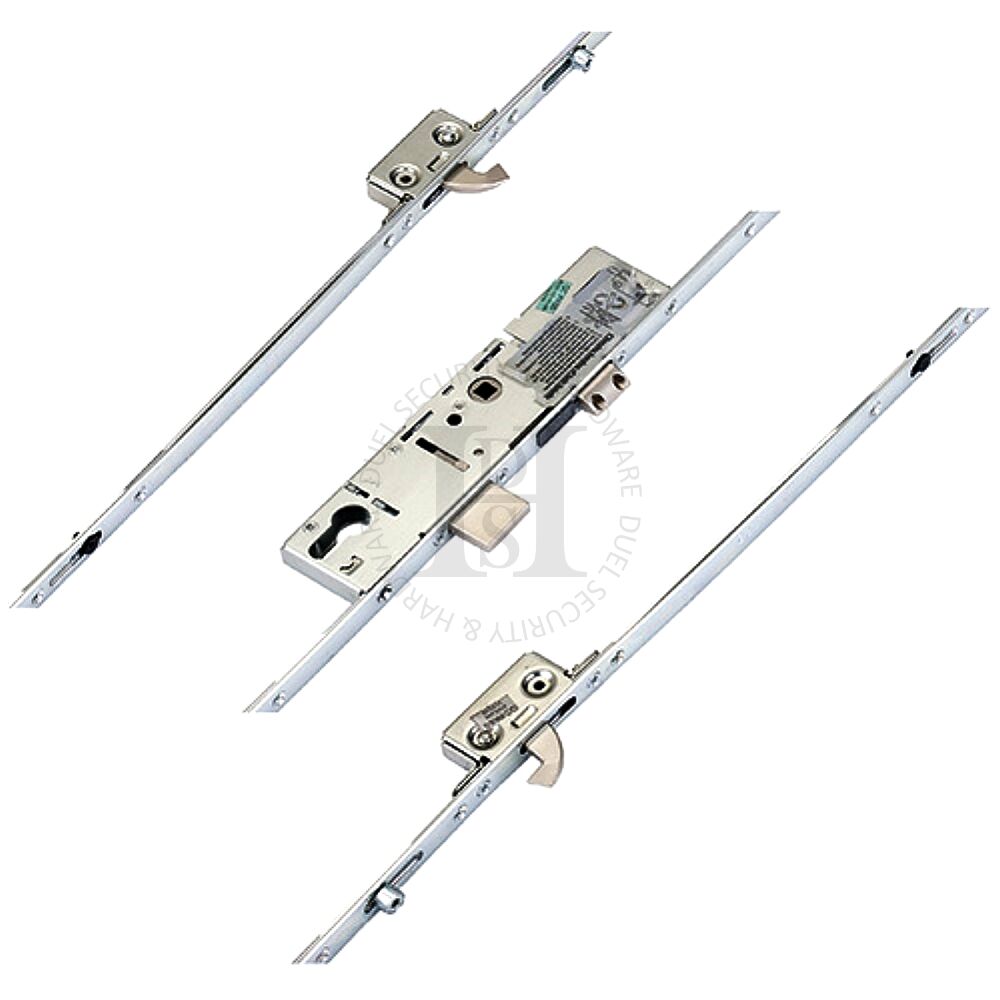

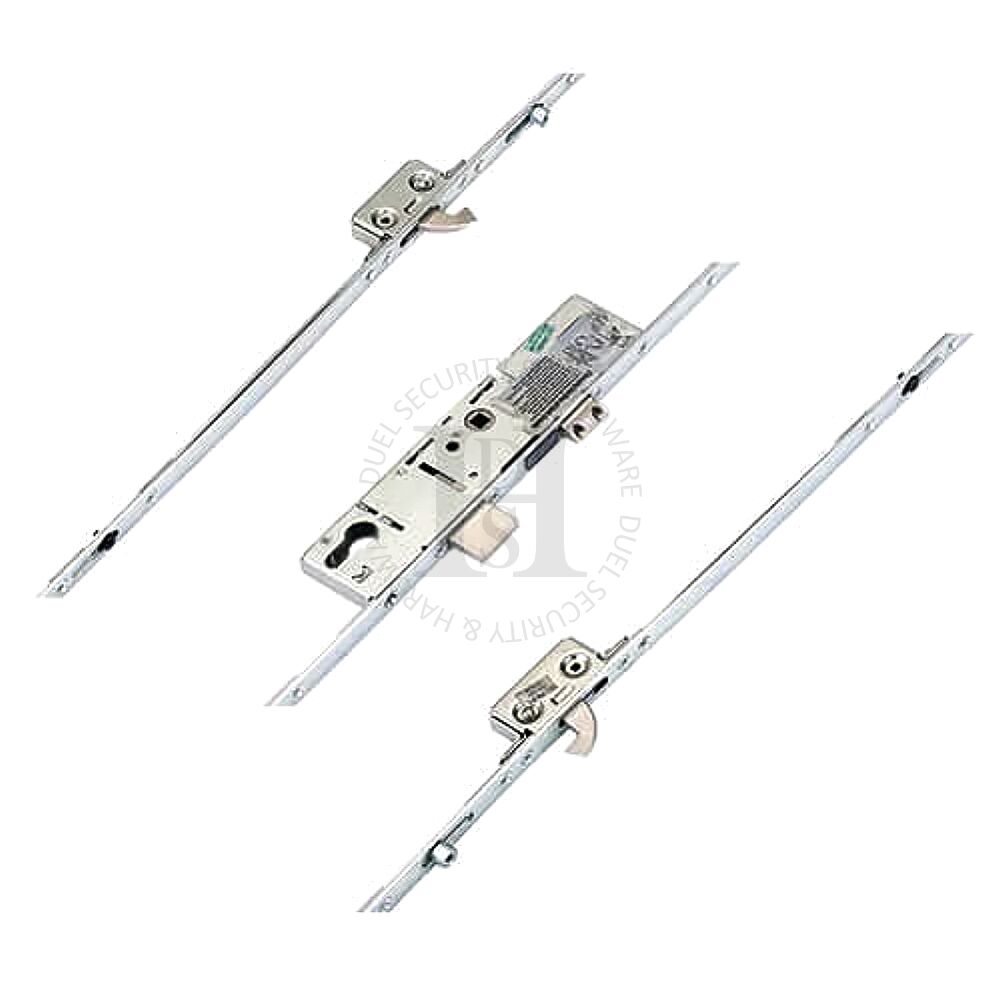

ERA 52300019AA 2 Small Hooks & 2 Rollers Multipoint Lock Mechanism 30mm Backset - Option 1

Availability: In stock

£171.23
  • Buy 5 for £136.99 each and save 20%

Details

The Era 52300019AA 30mm Backset Multipoint Lock Mechanism may be stamped Homesafe,Surelock, Saracem, Duraflex, Supa, Westward or Cego. This unit was originally designed to replacem GU, Lockmaster, Maco & Winkhaus Locks without the need for new routing positions

Additional Information

Technical Description

Sizes

  • Overall length - 2250mm
  • Centres - 92mm
  • Case height - 221mm
  • Backset - 30mm
  • Case depth - 48mm
  • Distance between rollers - 1430mm
  • Distance between hooks - 1220mm

Operation

  • Lift lever or split spindle nightlatch
  • Undo the screw or screws (depending on the model) in the latch to remove. Reverse, reinsert and replace screw(s).
  • Remove latch to reveal a small screw. Use a small bladed screw driver to turn the screw 180 degrees then return latch to correct position.
SKU ERA-52300019AA
Barcode N/A
Brand ERA SECURITY
