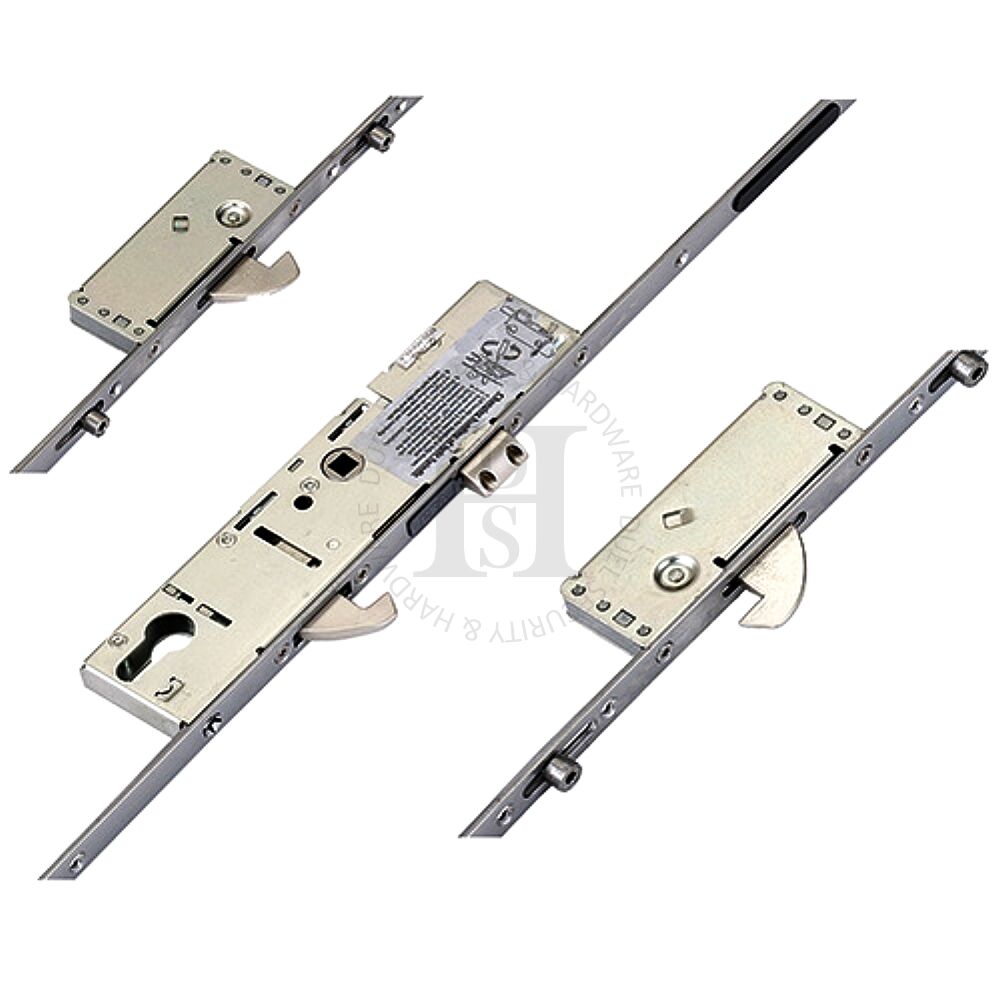

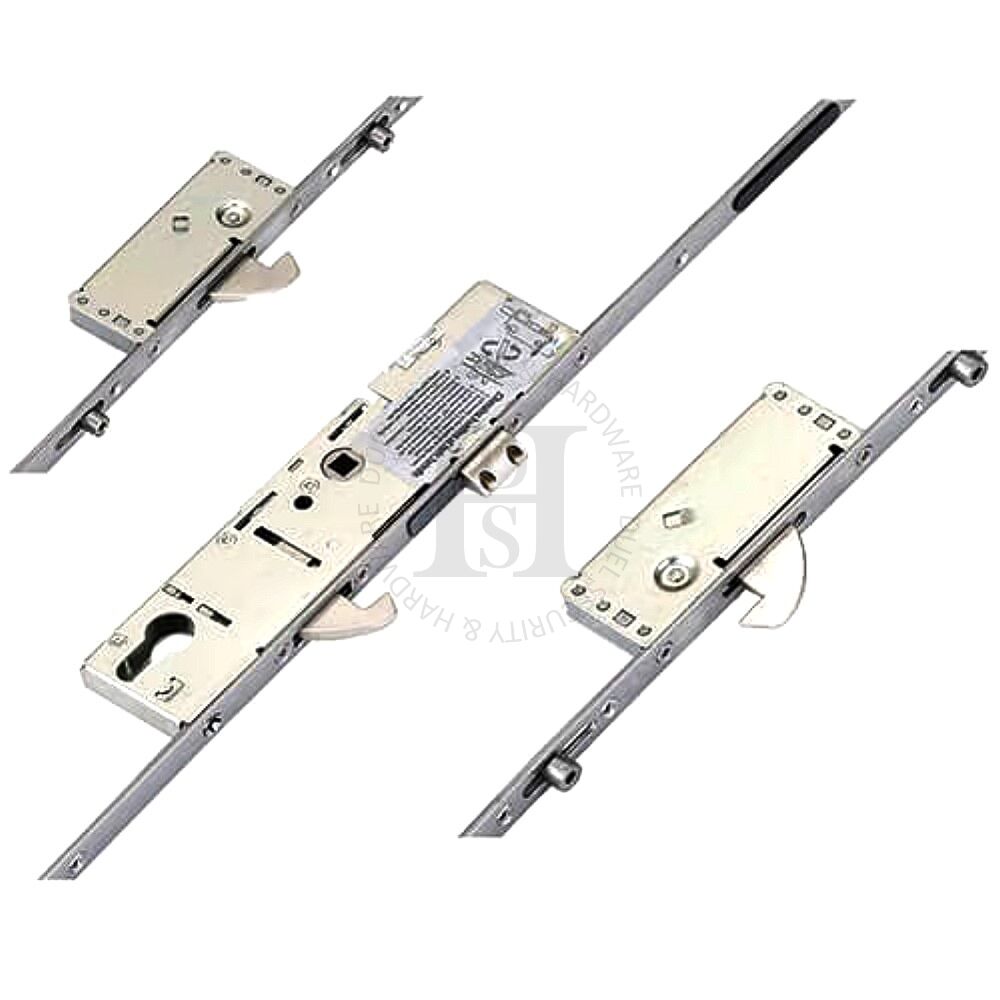

ERA 68350085AA Centre Hook Gearbox 2 Hooks & 4 Rollers Multipoint Lock Mechanism 35mm Backset

Availability: In stock

£171.23
  • Buy 5 for £136.99 each and save 20%

Details

The Era 68350085AA 35mm Backset Multipoint Lock Mechanism may be stamped Homesafe,Surelock, Spartan, Saracen, Duraflex, Supa, Westward or Cego. This unit was originally designed to replacem GU, Lockmaster, Maco & Winkhaus Locks without the need for new routing positions

Additional Information

Technical Description

Sizes

  • Centres - 92mm
  • Case height - 221mm
  • Backset - 35mm
  • Case depth - 53mm
  • Overall length - 2250mm
  • Distance between outer rollers - 1430mm
  • Distance between inner rollers - 699mm

Operation

  • Lift lever or split spindle nightlatch
  • Undo the screw or screws (depending on the model) in the latch to remove. Reverse, reinsert and replace screw(s).
  • Remove latch to reveal a small screw. Use a small bladed screw driver to turn the screw 180 degrees then return latch to correct position.
SKU ERA-68350085AA
Barcode N/A
Brand ERA SECURITY
