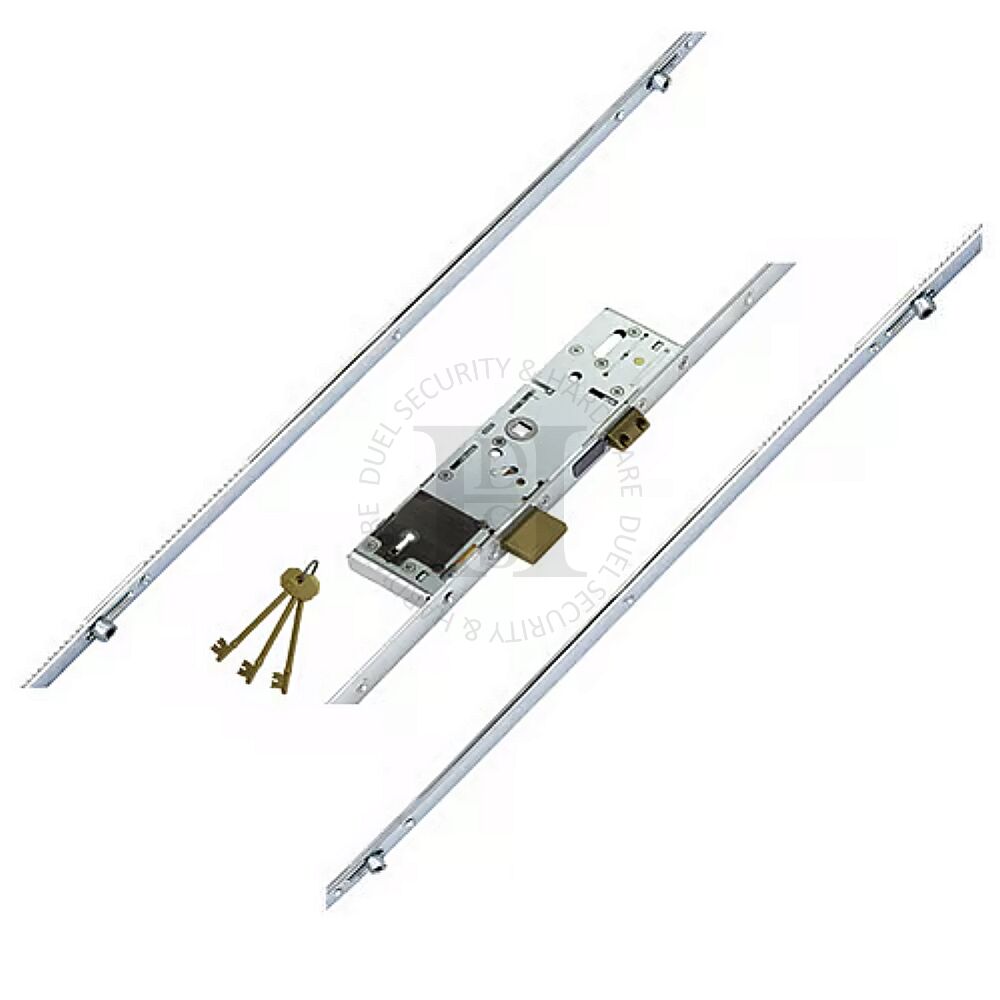

ERA V503519AA Vectis Latch Deadbolt 4 Rollers Split Spindle 35mm Backset Multipoint Door Lock Mechanism

This ERA V503519AA Vectis Latch Deadbolt 4 Rollers Split Spindle 35mm Backset Multipoint Door Lock Mechanism has a 5 Lever Mortice Lock mechanism and doesn't require a Euro Profile Cylinder

Identifying an ERA Vectis multipoint door lock can be straightforward but there are some traps to watch out for.

The first trap is that ERA make locks for a huge number of different door and window companies, many of whom rebrand the locks. Often faceplates are stamped with the ERA logo, but they can also stamped with a range of other manufacturers.

However, if your multipoint door lock features a 5 lever mortice lock key (or has a UK key hole if you client has lost the key), you can be sure that the lock is an ERA Vectis.

Another good indication as to whether the lock you are identifying is made by ERA is the holdback snib on the faceplate. This is often grey on deadbolt and hook bolt locks and blue on Vectis locks. However, some of the brands named above have changed the colour of the snib to black or green.

Its also worth noting that sometimes ERA locks are referred to Saracen. This harks back to the days when Laird made locks for the double glazing industry, before they were rebranded as ERA.

All ERA Vectis multipoint locks feature a split spindle mechanism which makes replacements easier as you only need to be concerned with one locking function.

Please also note that ERA Vectis locks feature the same levers as the British Standard ERA Fortress mortice lock. The Fortress mortice lock is one of the most popular mortice locks and allows you the ability to key alike your multipoint door lock to a timber door with a traditional mortice lock. Please contact us as we can key alike your locks as you require. ERA Vectis locks may require a slightly longer key, depending on the thickness of the door profile, but we can assist with that too.

We'd always recommend removing the multipoint from the door to help identify it. This is especially important if you can't identify the brand from the faceplate or it has been rebranded.

ERA Vectis multipoint door lock gearboxes are very distinctive, with a square design and no corner cut outs. The big give away is the UK key way, designed to accept a traditional mortice key. The overall length of the gearbox is 221mm and the width is the backset plus 18mm.

Rollers are used for compression, to pull the door against the frame, to help prevent dust or water ingress. They do little for security, but they also have the added benefit of helping to prevent the door from becoming warped as it is supported across its full height. This is dependent on the rollers being engaged into their keeps.

Rollers are normally adjustable by +/- 1mm to help achieve optimum weather sealing.
