Fab & Fix DCHANLP92SC Windsor Range UPVC Lever/Moveable Pad 92mm PZ Handles Satin Chrome - No Spindle

£57.53
Availability: In stock
SKU
FAB-DCHANLP92SC
  • Buy 3 for £51.78 each and save 10%
  • Buy 5 for £48.90 each and save 15%
  • Buy 10 for £46.02 each and save 20%

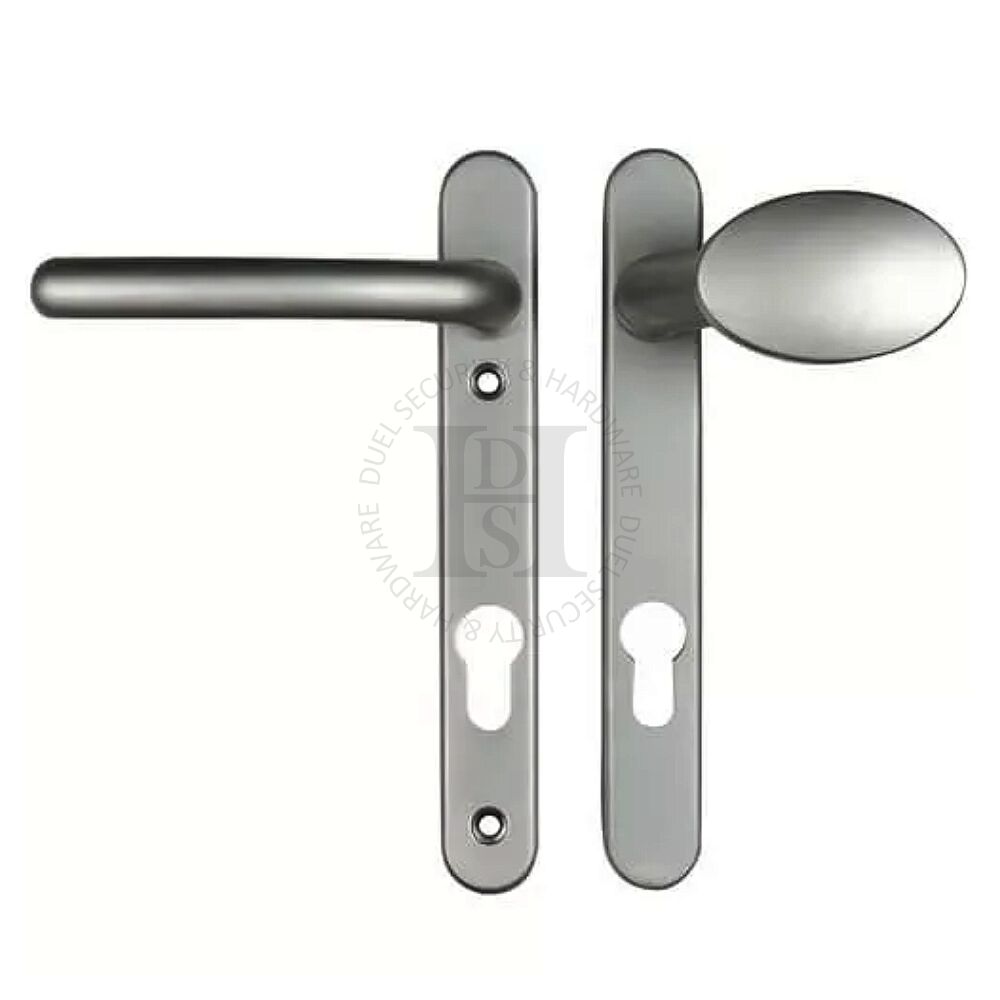

These Fab & Fix DCHANLP92SC UPVC Lever Pad Handles from the Windsor range have a sprung 92pz internal lever handle and external moveable pad. With a backplate of 205mm x 28mm they are available in Satin Chrome finish  which all meet the requirements of BS EN 1670:2007 Grade 5 (480 hours) for Corrosion Resistance.

The distance between the fixing screws is 122mm with the bottom screw positioned 23mm below the euro profile cut-out.

They are supplied as a pair complete with 2 colour co-ordinated screws. Spindle to be ordered seperately, see spindle options and ordering codes below.

More Information
Technical Description
  • Sprung
  • Length: 205mm
  • Width: 28mm
  • Centres (PZ): 92mm
  • Screw centres: 122mm
  • Base of euro to bottom screw: 23mm
  • Top screw to spindle: 22mm
  • Supplied with screws
  • Not supplied with spindle
  • Solid spindle order: TSSSPIN8
  • Split spindle order: V-SPLITSPIN
  • Supplied as a pair
  • Non-handed
  • Polybagged
SKU FAB-DCHANLP92SC
