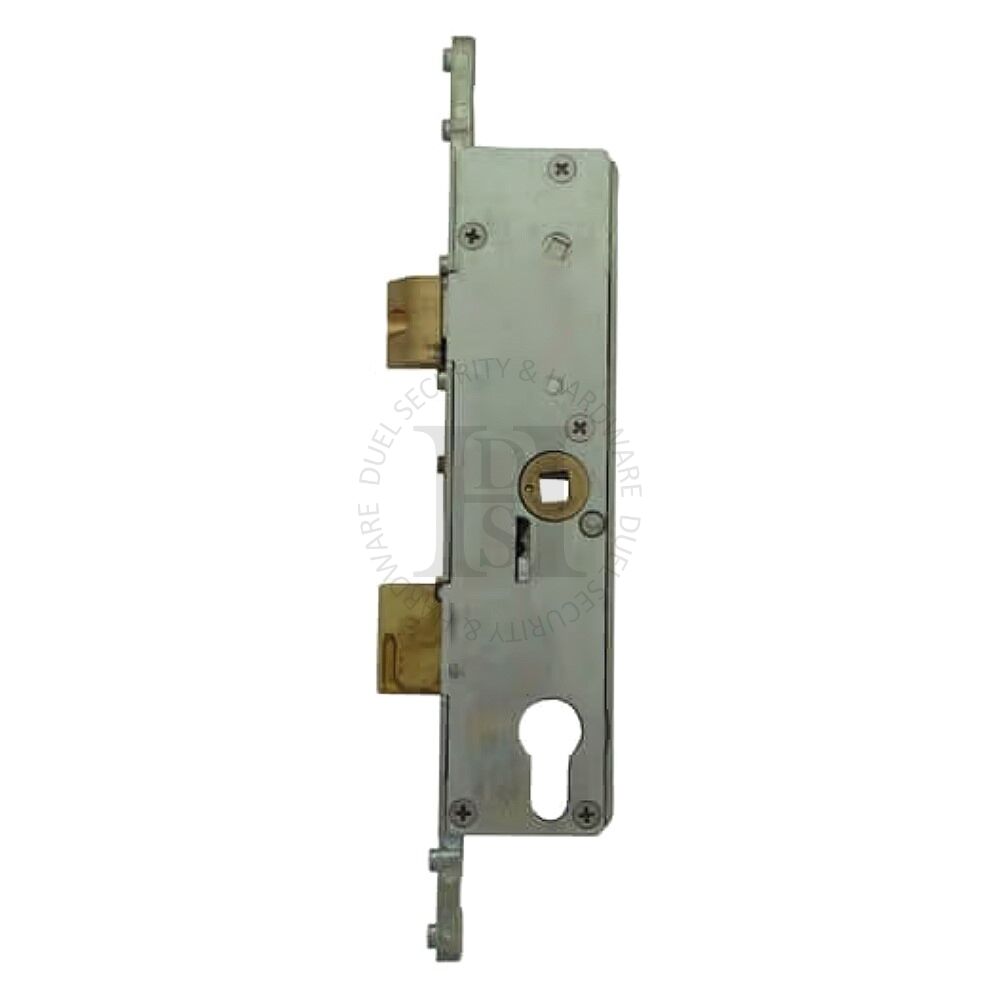

Fullex SL16 Genuine Multipoint 68mm Centre Gearbox 45mm Backset - Lift Lever or Split Spindle

Fullex SL16 Genuine Multipoint 68mm Centre Gearbox 45mm Backset - Lift Lever or Split Spindle nightlatch function.

All SL16 gearboxes feature a 68mm centres (PZ) measurement. This is only found on Fullex locks (the FULCCA also has this measurement). The overall case height is 194mm. The case width is the backset + 15mm. The latch is 27mm high, the deadbolt is 32mm high and the distance between the bottom of the latch and the top of the deadbolt is 65mm.

SL16 gearboxes come with fixing tabs at the top and the bottom of the gearbox. These measure 15mm wide by 9mm deep. The lugs are 11mm wide. The case attaches to the faceplate with screws at the top and bottom which measure 206mm apart.

New Style Case

We stock a range of associated products for Fullex SL16 gearboxes, including multipoint door locks, keeps, spindles, handles and accessories.
