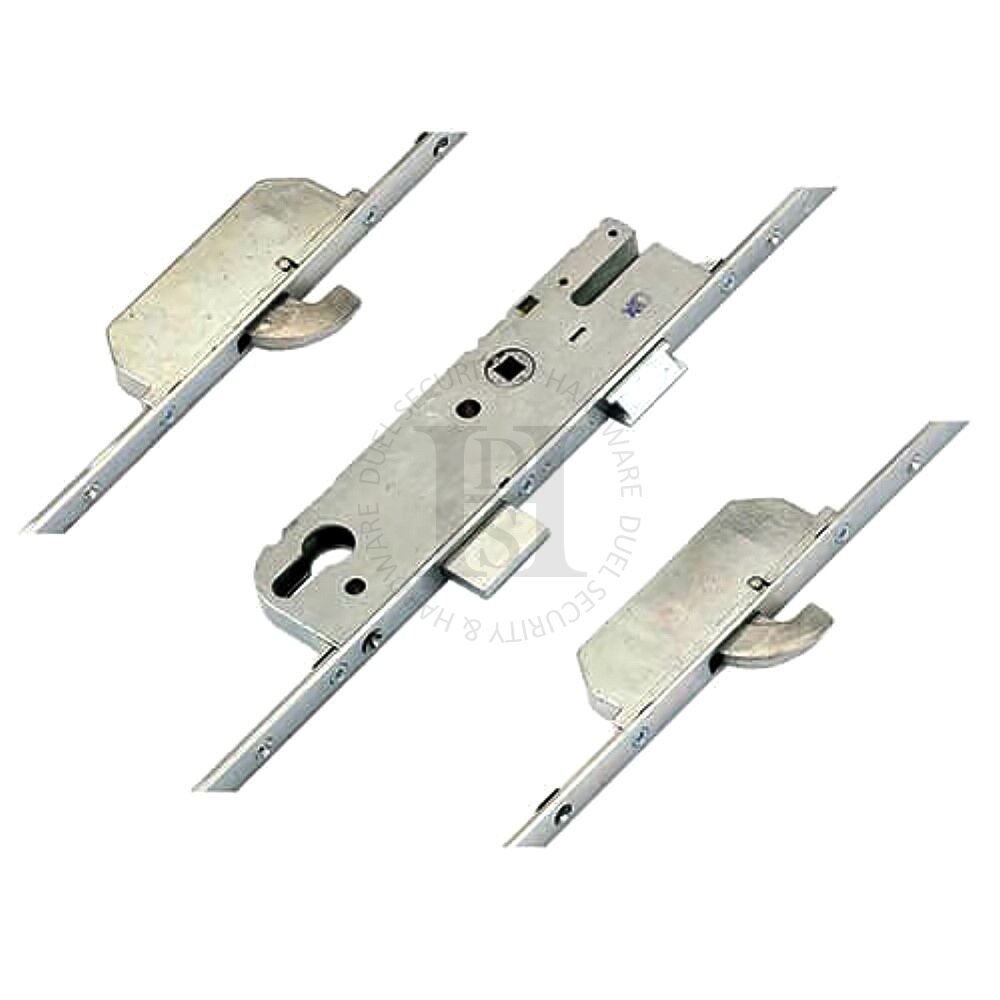

GU 63220204 2 Hookbolts 45mm Backset Europa Multipoint Lock Mechanism

GU Secury Europa SH2, 1 piece, latch, deadbolt and 2 hookbolts

Specification

• Operation - Lift lever

Additional Information

• Distance between hookbolts - 1395mm
• Overall length 2100mm
• GU locks are now manufactured with a new style centre lock case
• The main difference between the old and the new style is the distance between the latch and deadbolt, this will sometimes cause problems with the strike plates
• The distance between the latch and deadbolt on the new style centre lock case is 52mm
• The distance between the latch and deadbolt on the old style centre lock case is 62mm
• The other major difference is the difference in the height of the centre lock case, although this shouldn't case any real problems when retrofitting
• Case height on new style centre lock case is 195mm
• Case height on old style centre lock case is 207mm

Versions Available

• 63220204 - 45mm Backset - 92mm Centres - 20mm Flat Faceplate - 8mm Spindle
