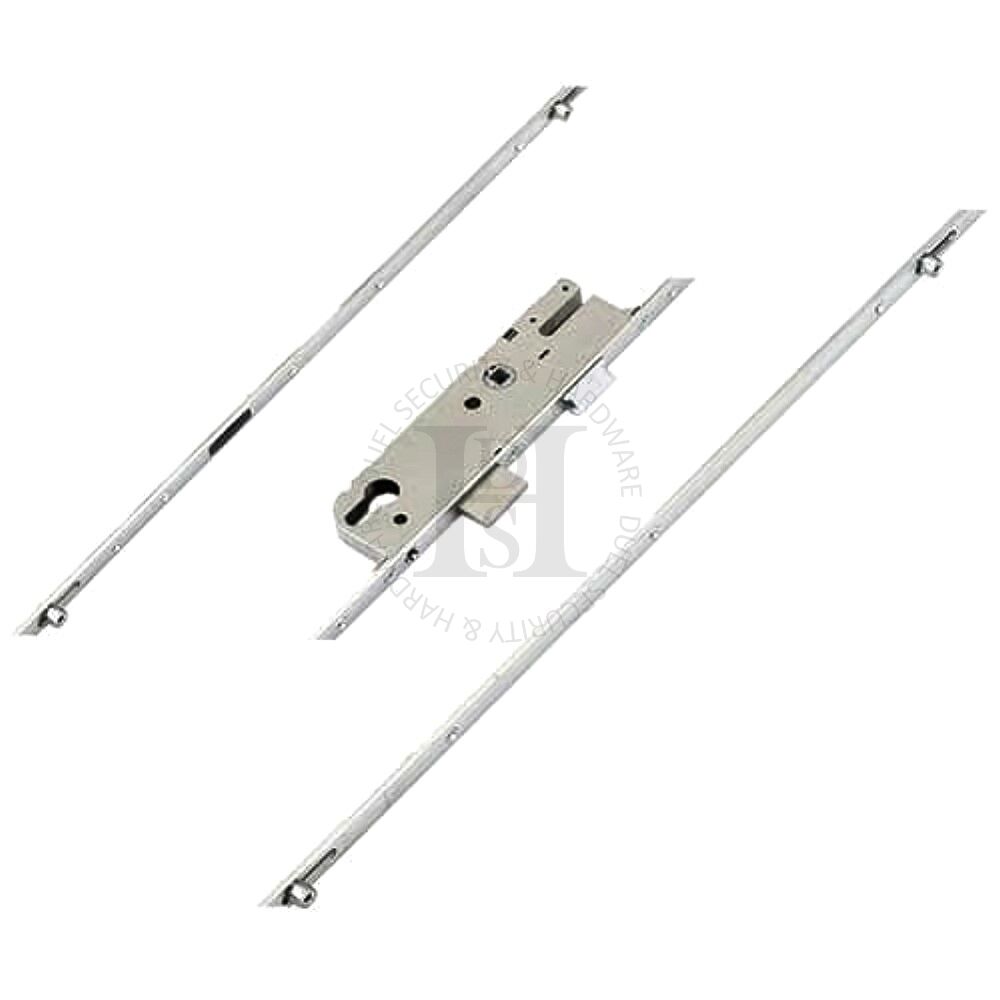

GU 63258002 4 Roller 45mm Backset Multipoint Lock Mechanism

GU 1 piece, latch, deadbolt and 4 rollers

Specification

• Operation: Lift lever

Additional Information

• Distance between outer rollers - 1610mm
• Distance between inner rollers - 670mm
• GU locks are now manufactured with a new style centre case
• The main difference between the old and new style is the distance between latch and deadbolt, this will sometimes cause problems with the strike plates
• The distance between the latch and deadbolt on the new style lock is 52mm
• The distance between the latch and deadbolt on the old style lock is 62mm
• The other major difference is the difference in the height of the lockcase, although this shouldn't cause any real problems when retrofitting
• Case height on new style lock is 195mm
• Case height on old style lock is 207mm

Latch Reversal

• Push flat bladed screwdriver into  small rectangular slot above spindle and pull latch put at the same time

Versions Available

• 63258002 - 45mm Backset - 92mm Centres - 16mm Flat Faceplate - 8mm Spindle
