Ingersoll SC1B Replacement 10 Lever Rim Cylinder Satin Chrome

£154.88
Availability: In stock
SKU
ING-SC1S

This Ingersoll SC1S Replacement 10 Lever Rim Cylinder Satin Chrome are specifically designed to work in conjunction with the range of Ingersoll nightlatches, such as the SC71 and SC73. It is important when replacing these cylinders to always use a like for like Ingersoll type cylinder, as they are very different to normal rim cylinders such as those found on Yale and ERA nightlatches. Ingersoll SC1 Rim cylinders have a larger body requiring a larger cut out on the door, and also have different spacings and fixings for attaching to the internal face of the nightlatch itself.

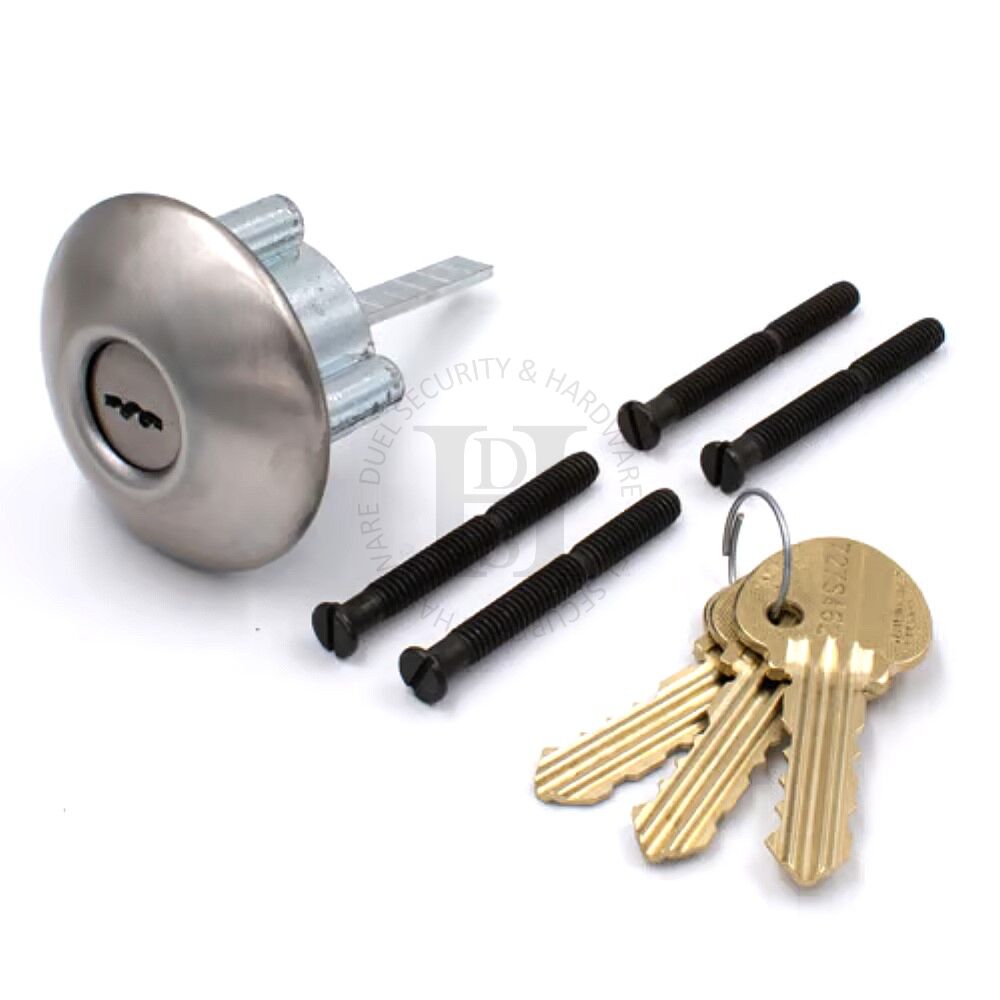

Available in Polished Brass, Polished Chrome, or Satin Silver finishes. These cylinders come supplied with four fixing screws and three keys and supplied boxed in singles.

More Information
Technical Description
  • Manufacturer: Ingersoll
  • Part Number: SC1S
  • Depth for Screws: 80mm
  • Case Face Diameter: 53mm
  • Face Thickness: 13mm
  • Body Depth: 27mm
  • Body Diameter: 32mm (Excluding Bolt area)
  • Max door thickness: 35-60mm
  • 10 Lever Cylinder
  • Supplied with 3 keys
  • Finish: Satin Chrome (Silver)
SKU ING-SC1S
Manufacturer INGERSOLL
