  • Mila Master MM2H2AL4R35 2H, 2 Anti Lift bolts & 4R Multipoint Lock Mechanism Mila Master MM2H2AL4R35 2H, 2 Anti Lift bolts & 4R Multipoint Lock Mechanism

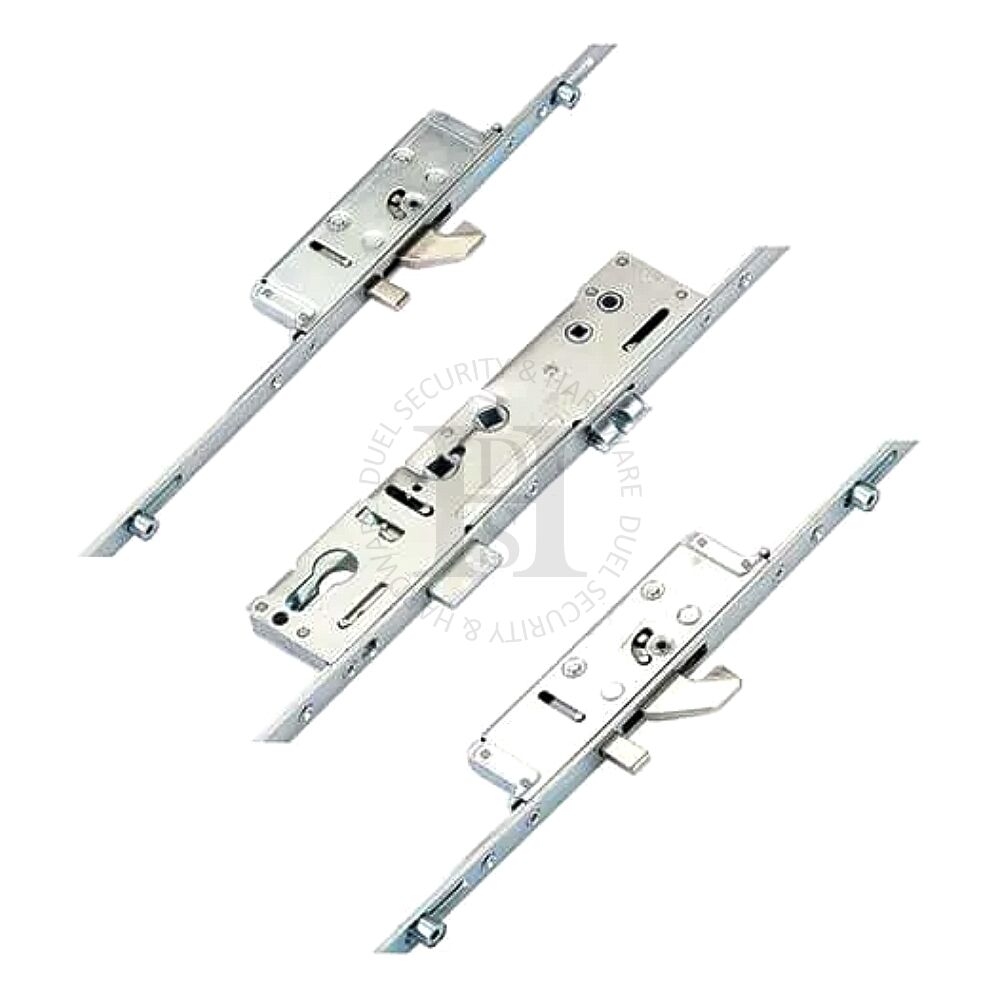

Mila Master MM2H2AL4R35 2H, 2 Anti Lift bolts & 4R Multipoint Lock Mechanism

Availability: In stock

£107.23

Details

Mila 1 piece, latch, deadbolt, 2 hooks, 2 anti-lift bolts and 4 rollers



Specification

  • Operation - Lift lever or double spindle nightlatch



Additional Information

  • Distance between outer rollers - 1310mm
  • Distance between inner rollers - 745mm
  • Distance betweeen hooks - 1030mm
  • Lock is unsprung
  • These locks have two spindles, if replacing a single spindle version it may be necessary to replace the handles as the screw may interfere with the bottom spindle hole, alternatively purchase a single spindle lockcase only
  • Unsprung handles are not suitable for use with this lock
  • Backset - 35mm
  • Centres - 92mm/62mm
  • Faceplate - Flat, 16mm
  • Spindle - Double, 8mm



Latch Reversal

  • Undo screw in latch and twist latch

Additional Information

Technical Description N/A
SKU MIL-MM2H2AL4R35
Barcode N/A
Brand N/A
