  • Roto TSL20400 20mm Backset 400mm Inline Mechanism Roto TSL20400 20mm Backset 400mm Inline Mechanism

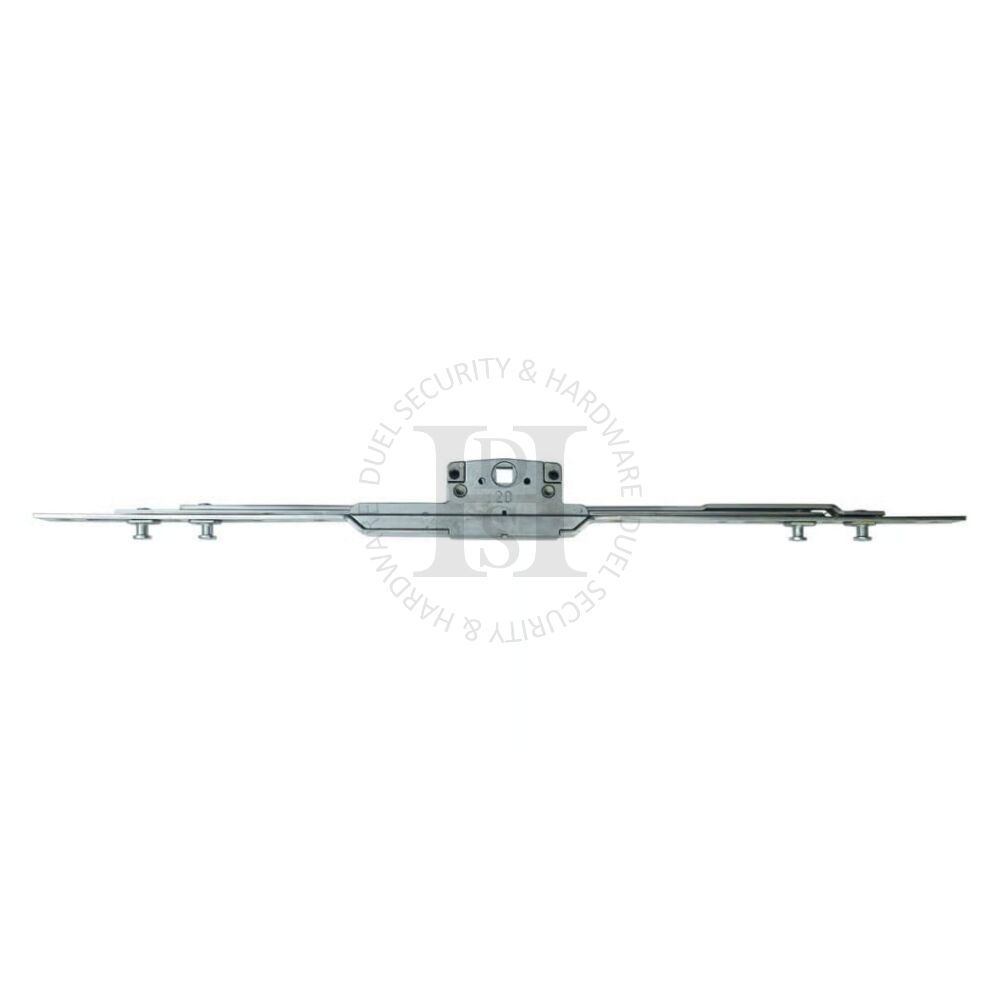

Roto TSL20400 20mm Backset 400mm Inline Mechanism

Availability: In stock

£19.99

Details



Description

  • Roto TSL window espags have a unique gear mechanism and comes in 20mm or 22mm Backsets



Information

  • Unique Gearbox
  • 7mm Square Drive Spindle
  • 8mm Mushroom Height
  • 16mm Wode Flat Faceplate
  • See Picture Diagram to reference dimensions in the versions below with lettering A, B, C or D



Versions

  • TSL20400 - 20mm Backset - Length 400mm - 2 Mushrooms - A = 143mm - B = N/A - C = 143mm - D = N/A
  • TSL20550 - 20mm Backset - Length 550mm - 2 Mushrooms - A = 213mm - B = N/A - C = 213mm - D = N/A
  • TSL20750 - 20mm Backset - Length 750mm - 4 Mushrooms - A = 143mm - B = 313mm - C = 143mm -         D = 313mm
  • TSL20850 - 20mm Backset - Length 850mm - 4 Mushrooms - A = 143mm - B = 363mm - C = 143mm -         D = 363mm
  • TSL20950 - 20mm Backset - Length 950mm - 4 Mushrooms - A = 143mm - B = 413mm - C = 143mm -          D = 413mm
  • TSL201050 - 20mm Backset - Length 1050mm - 4 Mushrooms - A = 143mm - B = 463mm - C = 143mm -       D = 463mm
  • TSL22400 - 22mm Backset - Length 400mm - 2 Mushrooms - A = 143mm - B = N/A - C = 143mm - D = N/A
  • TSL22550 - 22mm Backset - Length 550mm - 2 Mushrooms - A = 213mm - B = N/A - C = 213mm - D = N/A
  • TSL22750 - 22mm Backset - Length 750mm - 4 Mushrooms - A = 143mm - B = 313mm - C = 143mm -          D = 313mm
  • TSL22850 - 22mm Backset - Length 850mm - 4 Mushrooms - A = 143mm - B = 363mm - C = 143mm -         D = 363mm
  • TSL22950 - 22mm Backset - Length 950mm - 4 Mushrooms - A = 143mm - B = 413mm - C = 143mm -           D = 413mm
  • TSL221050 - 22mm Backset - Length 1050mm - 4 Mushrooms - A = 143mm - B = 463mm - C = 143mm -       D = 463mm

Additional Information

Technical Description N/A
SKU ROT-TDL-SERIES1458
Barcode N/A
Brand N/A
