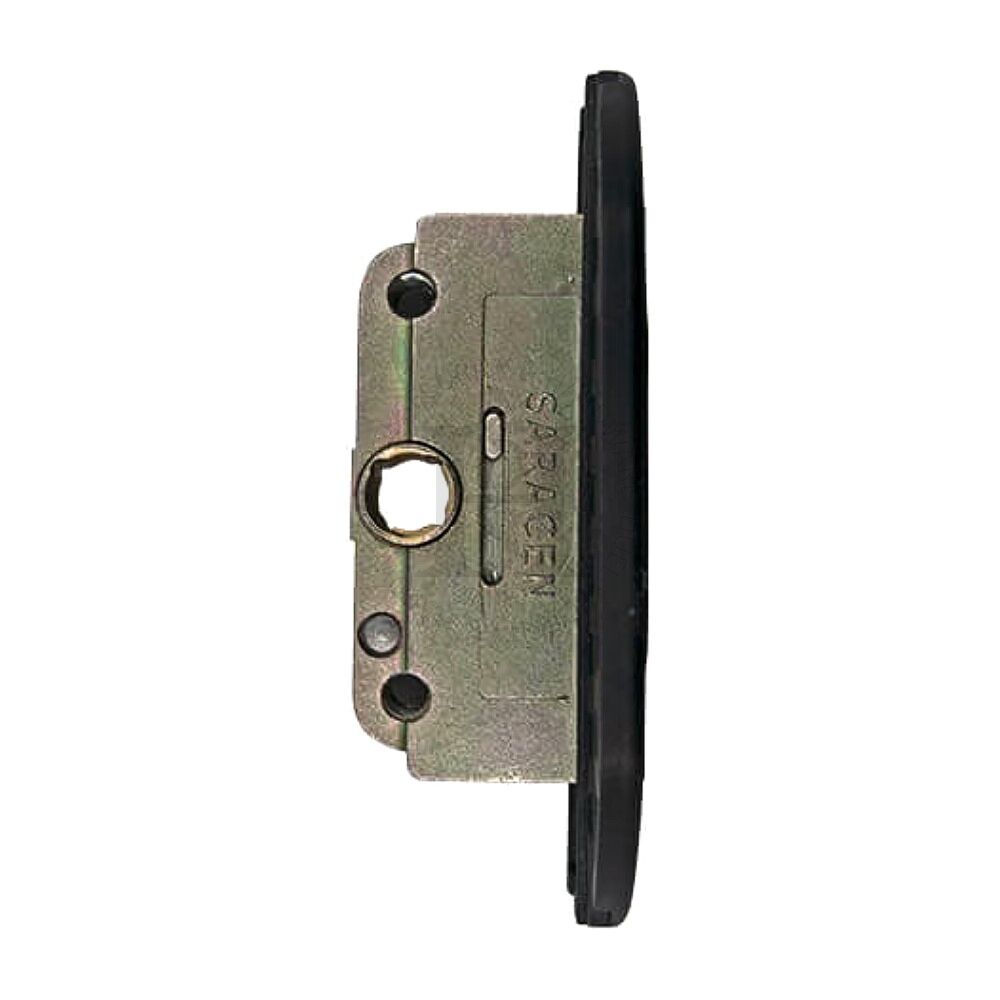

Saracen SARACEN11 Right Hand Window Deadbolt Centre Gearbox Clip Fit Uses Bayonet Push and Twist Connection

This Saracen SARACEN11 Right Hand Window Deadbolt Centre Gearbox Clip Fit Uses Bayonet Push and Twist Connection, with a black cover plate, connect to the rods by pushing in and twisting them to lock into place.

Early versions had a metal faceplate and are also stamped Halo, WHS and Bowater

Extension pieces are supplied separately.

These gearboxes have a 22mm backset and are handed. To ensure the correct hand is chosen see the handing details below.

• SARACEN11 - Right Hand

For side hung windows when viewed from inside:
Gearbox positioned on the left side of the window, arrow on deadbolt points downwards.

For top hung windows when viewed from inside:
Positioned at the bottom of the window, arrow on deadbolt points to the right.
