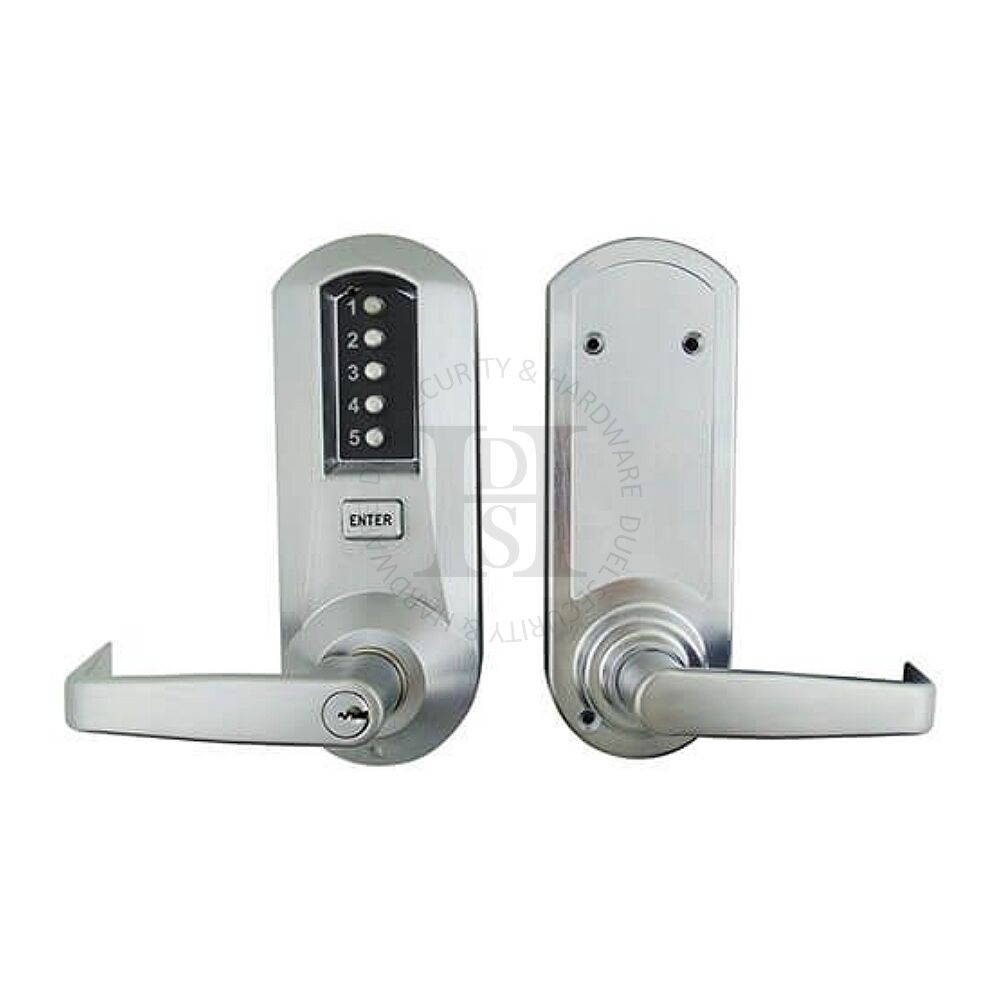

Simplex 5000 Standard Digital Pushbutton Lock Satin Chrome

Specification

• Outside Operation: Lever handle on entry of code
• Inside Operation: Lever handle - free exit
• Number of Codes: One
• Combinations: 1000+
• Code Length: 1 to 5
• Passage Set: N/A
• Latch: Heavy duty mortice dead latch
• Finishes: (SC) Satin Chrome
• Case Depth Required: 115mm
• Backset: 70mm
• Height: 224mm
• Width: 85mm
• Weather Resistant: Yes

Operation

• Mechanical retraction of latch upon entry of code
• Latch retracts when lever is turned  in either direction

Features

• Non handed Lock (Reversible)
• 3 hour UL/ULC door rating
• Ideal for controlling access to high traffic security sensitive areas
• Installs on wood or metal doors
• Quick and easy combination change to ensure continued maximum security
• Extra heavy duty - Ansi 156.2 Grade 1 Certified
• Mechanical key override
• Suits doors 35-57mm thick
• Code change from outside
• Case Depth Required: 115mm
• Backset: 70mm
• Height: 224mm
• Width: 85mm
• Weather Resistant: Yes
