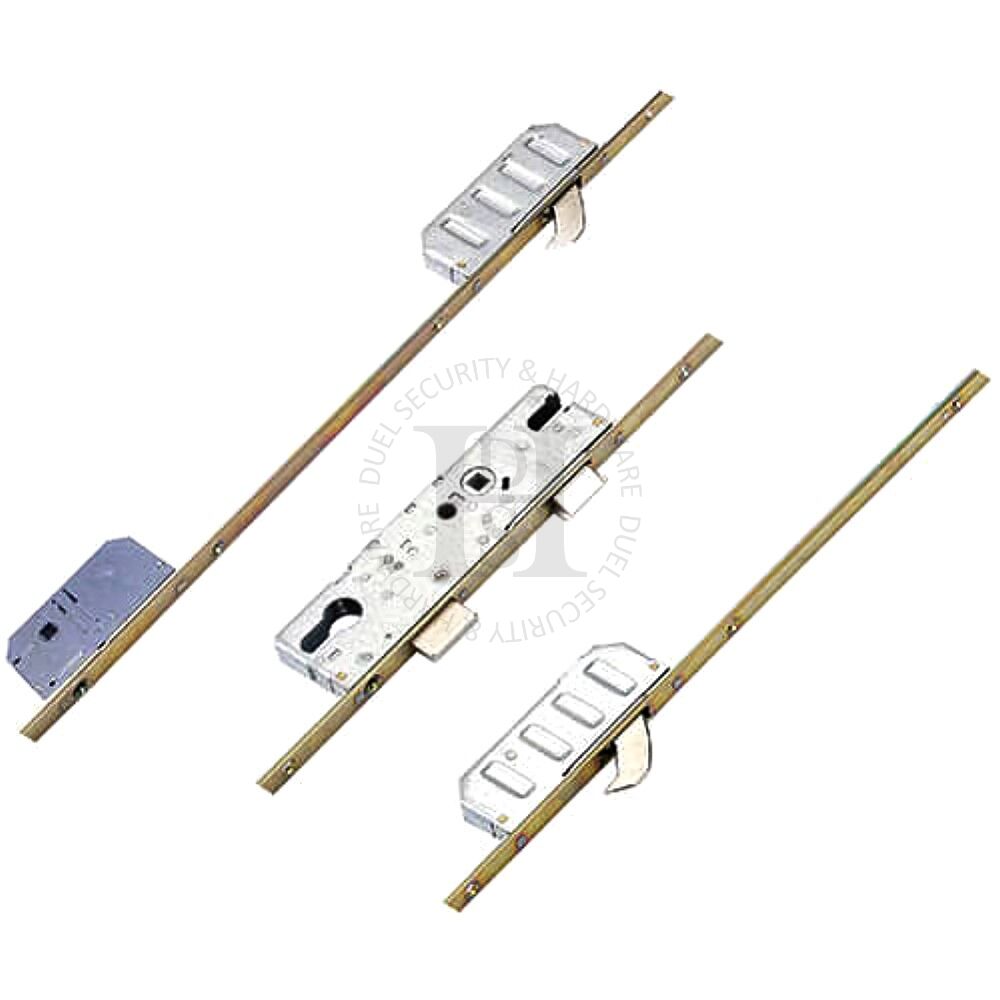

Winkhaus 1606120 Multipoint Lock 45mm Backset

Winkhaus 1 piece, latch, deadbolt, 2 hooks and entryguard facility

Specification

• Operation - Lift lever or split spindle nightlatch

Additional Information

• Distance between outer hook bolts - 1490mm
• Entryguard engages automatically with a door bar on the frame, preventing the door from fully opening.
• Entryguard allows you to see who is at the door before you fully open it

Latch Reversal

• Push latch and undo screw in back of lockcase to remove latch. Reverse and re-instate

Nightlatch Function Reversal Instructions

• Locate the small slot adjacent to the spindle, insert a flat bladed screwdriver and push black split pin to opposite side. Please ensure split pin is not pushed all the way out

Versions Available

• 1607060 - 35mm Backset - 92mm Centres - 16mm Flat Faceplate - 8mm Split Spindle
• 1606120 - 45mm Backset - 92mm Centres - 16mm Flat Faceplate - 8mm Split Spindle
• 1607080 - 55mm Backset - 92mm Centres - 16mm Flat Faceplate - 8mm Split Spindle
