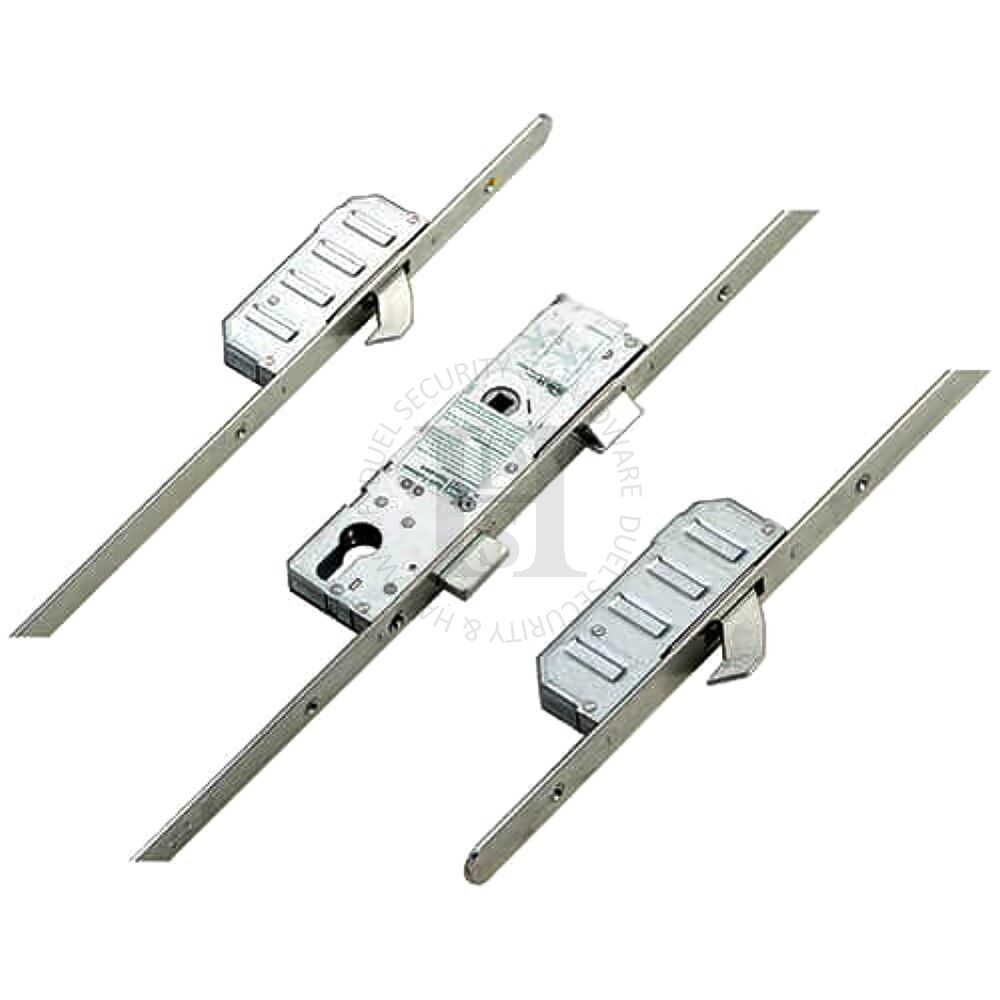

Winkhaus 1607830 Cobra Latch Deadbolt 2 Hooks Single Spindle 35mm Backset 20mm Faceplate Multipoint Door Mechanism

£159.95
Availability: In stock
SKU
WKS-1607830

This Winkhaus 1607830 Cobra Latch Deadbolt 2 Hooks Single Spindle 35mm Backset 20mm Faceplate Multipoint Door Mechanism.  can be used as a lift lever lock by using this lock with a solid spindle. Faceplate maybe marked STV-F2070.

The Cobra Multi-point Door Locking System from Winkhaus is part of an extensive range of Door locking systems which have been developed to suit all types of applications in various door framing materials.

Widely used in PVCu and Aluminium it has also been extensively specified and sold in the rapidly growing Composite and Timber door market.

The entire range of Cobra Locking systems are interchangeable, allowing upgrades and changes which maybe dictated by specific user requirements

More Information
Technical Description
  • Centres: 92mm
  • Case height: 185mm
  • Case depth: 73mm
  • Backset: 35mm
  • Centres PZ: 92mm
  • Faceplate: 20mm Flat - Round Ends
  • Spindle Size: 8mm
  • Hooks: 2
  • Deadbolts: 1
  • Latch: 1
  • Main Gearbox: Latch & deadbolt
  • Operation: Lift Lever
  • Spindle: 8mm
  • Handing: Non handed
  • Distance Between Hooks: 1490mm
  • Top Hook to Spindle: 720mm
  • Bottom Hook to Spindle: 770mm
  • Overall length: 1770mm (Round Ends)
SKU WKS-1607830
Manufacturer WINKHAUS
