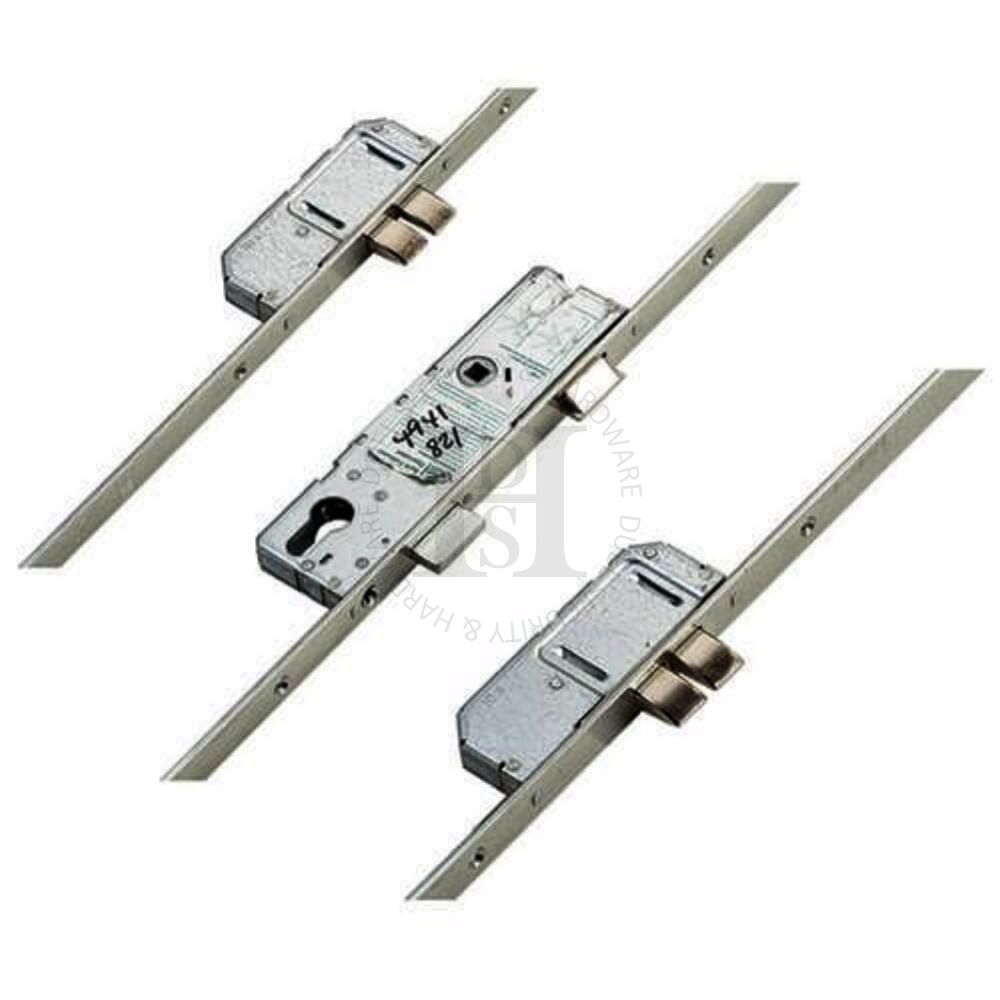

Winkhaus 4941813 Thunderbolt Latch 5 Deadbolts Pyro 20mm Radius Faceplate Split Spindle Multipoint Door Lock

£112.00
Availability: In stock
SKU
WKS-4941813

The Winkhaus 4941813 ThunderBolt 5 has been especially designed with increased tolerances for door installers. The latch is made of Steel and is suitable for FD30 Fire Doors. This locking system incorporates twin deadbolts in the upper and lower positions, providing high security levels that easily passes the rigours of PAS23/24 and EN14351-1 2006 security standards.

More Information
Technical Description
  • Backset: 35mm
  • Centres: 92mm
  • Case height: 185mm
  • Case depth: Backset + 18mm
  • Overall length - 1770mm
  • Distance between deadbolts - 1490mm
  • Operation: Lift lever or split spindle nightlatch
  • Latch reversal: Push in latch a screw will appear in back of lockcase. Undo the screw to remove the latch. Reverse, reinsert and replace screw.
SKU WKS-4941813
Manufacturer WINKHAUS
