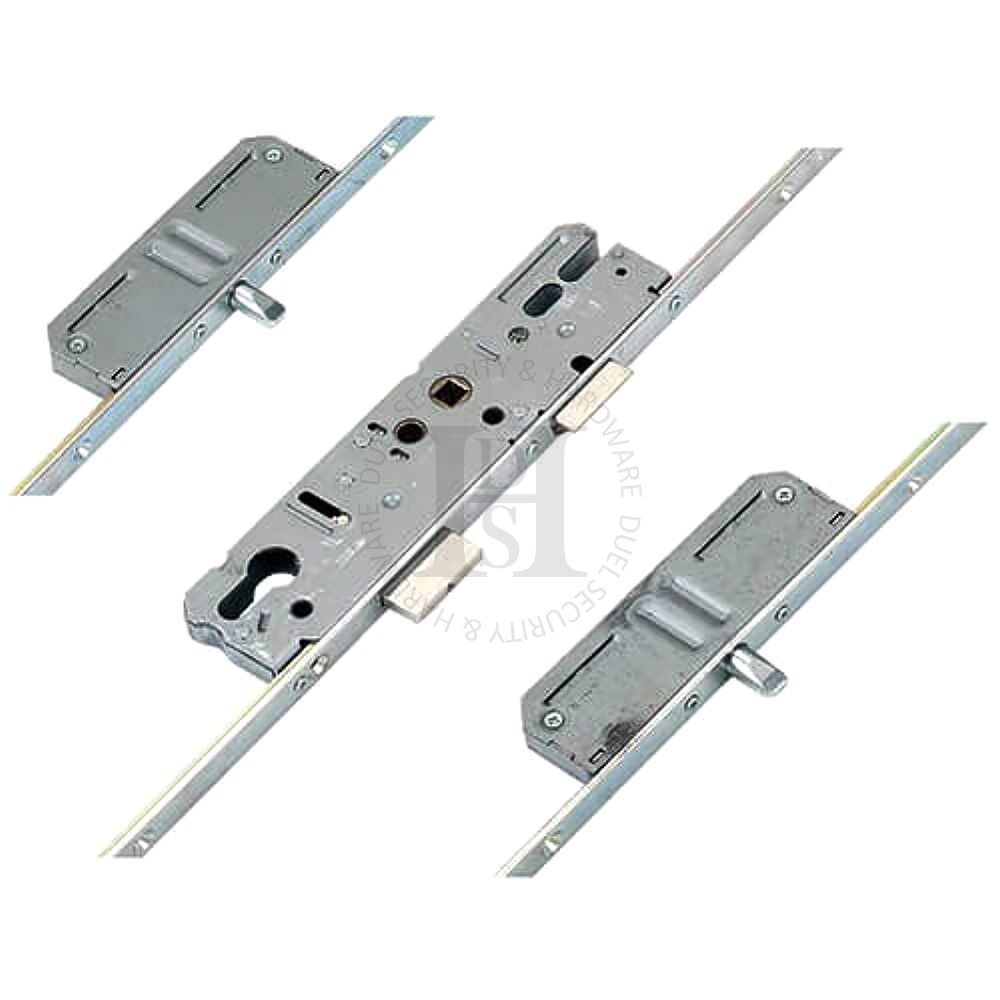

AS2300UR35 Lock 35mm Backset 24mm U-Rail

KFV 1 piece, latch, deadbolt and 2 pin bolts

Specification

• Operation - Key Wind

Additional Information

• 25mm and 30mm versions were originally supplied as a cedntre lock case latch only
• KFV multipoint locks have no markings on the faceplate
• All KFV multipoint locks will have a centre lock case height of 210mm with a small slot at the top of the case
• Distance between pin bolts - 1485mm
• 24mm U-Rail versions are becoming obsolete, we can advise you that if you have a rivet gun it is possible to remove the centre lock case from a 16mm flat version and re-rivet to the existing 24mm U-Rail version

Latch Reversal

• Push in latch and undo screw in back of lockcaseto remove latch, reverse and re-instate

Versions Available

• AS230035 - 35mm Backset - 92mm Centres - 16mm Flat Faceplate - 8mm Spindle
• AS230040 - 40mm Backset - 92mm Centres - 16mm Flat Faceplate - 8mm Spindle
• AS2300UR35 - .35mm Backset - 92mm Centres - 16mm Flat Faceplate - 24mm U-Rail Faceplate
