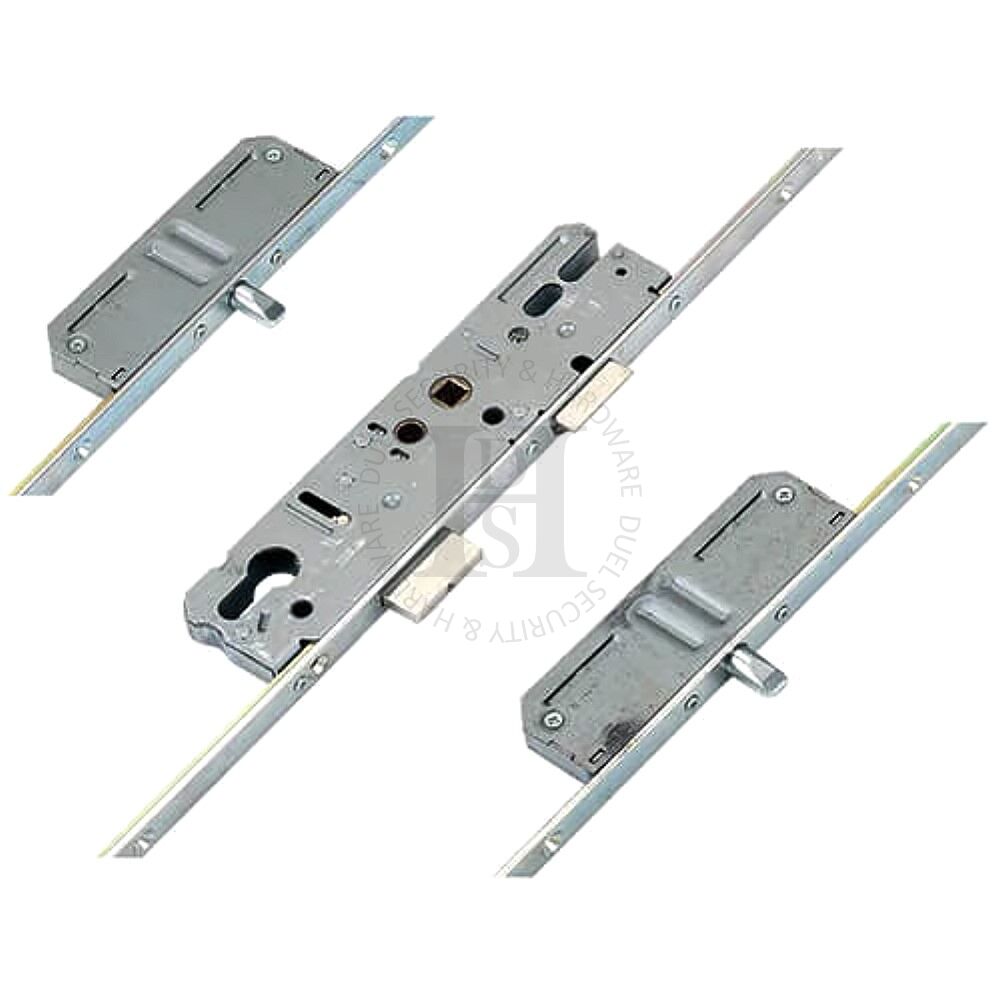

  • KFV AS230040 Multipoint Lock 40mm Backset KFV AS230040 Multipoint Lock 40mm Backset

KFV AS230040 Multipoint Lock 40mm Backset

Availability: In stock

£173.11

Details



KFV 1 piece, latch, deadbolt and 2 pin bolts



Specification

  • Operation - Key Wind



Additional Information

  • 25mm and 30mm versions were originally supplied as a cedntre lock case latch only
  • KFV multipoint locks have no markings on the faceplate
  • All KFV multipoint locks will have a centre lock case height of 210mm with a small slot at the top of the case
  • Distance between pin bolts - 1485mm
  • 24mm U-Rail versions are becoming obsolete, we can advise you that if you have a rivet gun it is possible to remove the centre lock case from a 16mm flat version and re-rivet to the existing 24mm U-Rail version



Latch Reversal

  • Push in latch and undo screw in back of lockcaseto remove latch, reverse and re-instate


Versions Available

  • AS230035 - 35mm Backset - 92mm Centres - 16mm Flat Faceplate - 8mm Spindle
  • AS230040 - 40mm Backset - 92mm Centres - 16mm Flat Faceplate - 8mm Spindle
  • AS2300UR35 - .35mm Backset - 92mm Centres - 16mm Flat Faceplate - 24mm U-Rail Faceplate

Additional Information

Technical Description N/A
SKU KFV-AS2300-SERIES465
Barcode N/A
Brand N/A
