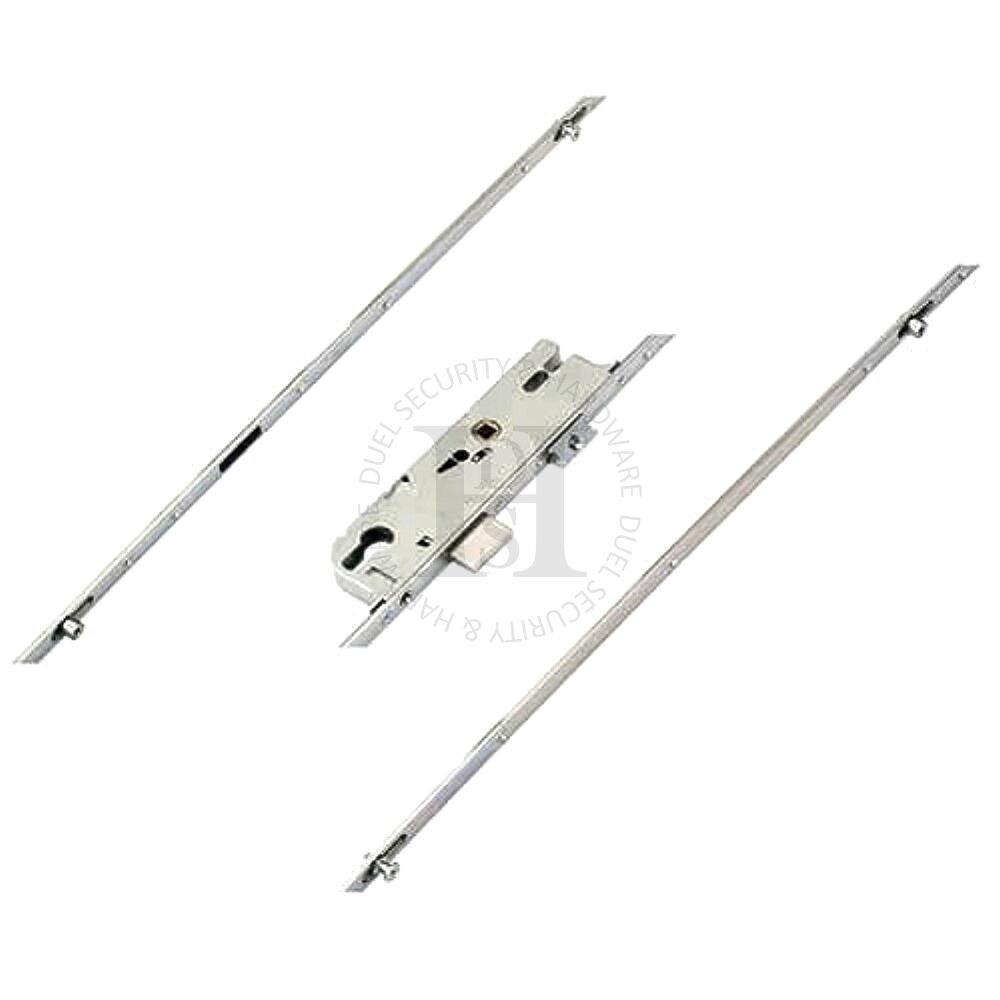

GU 63277201 2 Mushrooms & 2 Rollers Europa Multipoint Lock Mechanism

GU Secury Europa NL R/P 1 piece, latch, deadbolt, 2 mushrooms and 2 rollers

Specification

• Operation - Lift lever or split spindle nightlatch

Addtional Information

• Distance between outer mushrooms - 1610mm
• Distance between inner rollers - 670mm
• GU locks are now manufactured with a new style centre lock case
• The main difference between old and new style is the distance between the latch and deadbolt, this will sometimes cause problems with the strike plates
• The distance between the latch and deadbolt on the new style centre lock case is 52mm
• The distance between the latch and deadbolt on the old style centre lock case is 62mm
• The other major difference is the difference in the height of the centre lock case, although this shouldn't cause any real problems when retrofitting
• Case height on new style centre lock case is 195mm
• Case height on old style centre lock case is 207mm
• Backset - 35mm
• Centres - 92mm
• Faceplate - Flat, 16mm
• Spindle - Split, 8mm
