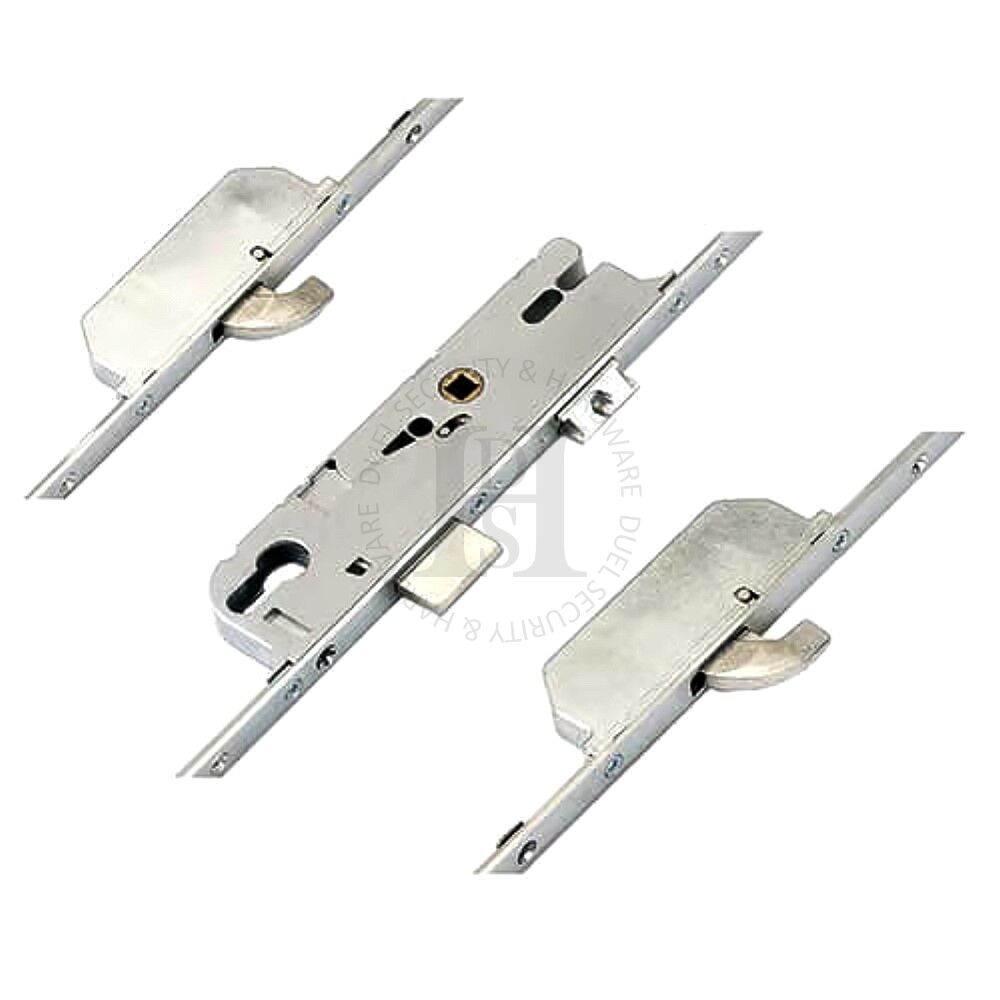

GU G1939822 2 Hookbolts 35mm Backset Mulitpoint Lock Mechanism

GU 1 pieice, latch, deadbolt and 2 hookbolts

Specification

• Operation -Split spindle nightlatch

Additional Operation

• Distance between hookbolts - 1228mm
• GU locks are now manufactured with a new style centre lock case
• The main difference between old and new style is the distance between the latch and deadbolt, this will sometimes cause with the strike plates
• The distance between the latch and deadbolt on the new style centre lock case is 52mm
• The distance between the latch and deadbolt on the old style centre lock case is 62mm
• The other major difference is the difference in the height of the centre lock case, although this shouldn't  cause any real problems when retrofitting
• Case height on the new style centre lock case is 195mm
• Case height on the old style centre lock case is 207mm

Versions Available

• G1939822 - 35mm Backset - 92mm Centres - 16mm Flat Faceplate - 8mm Split Spindle
