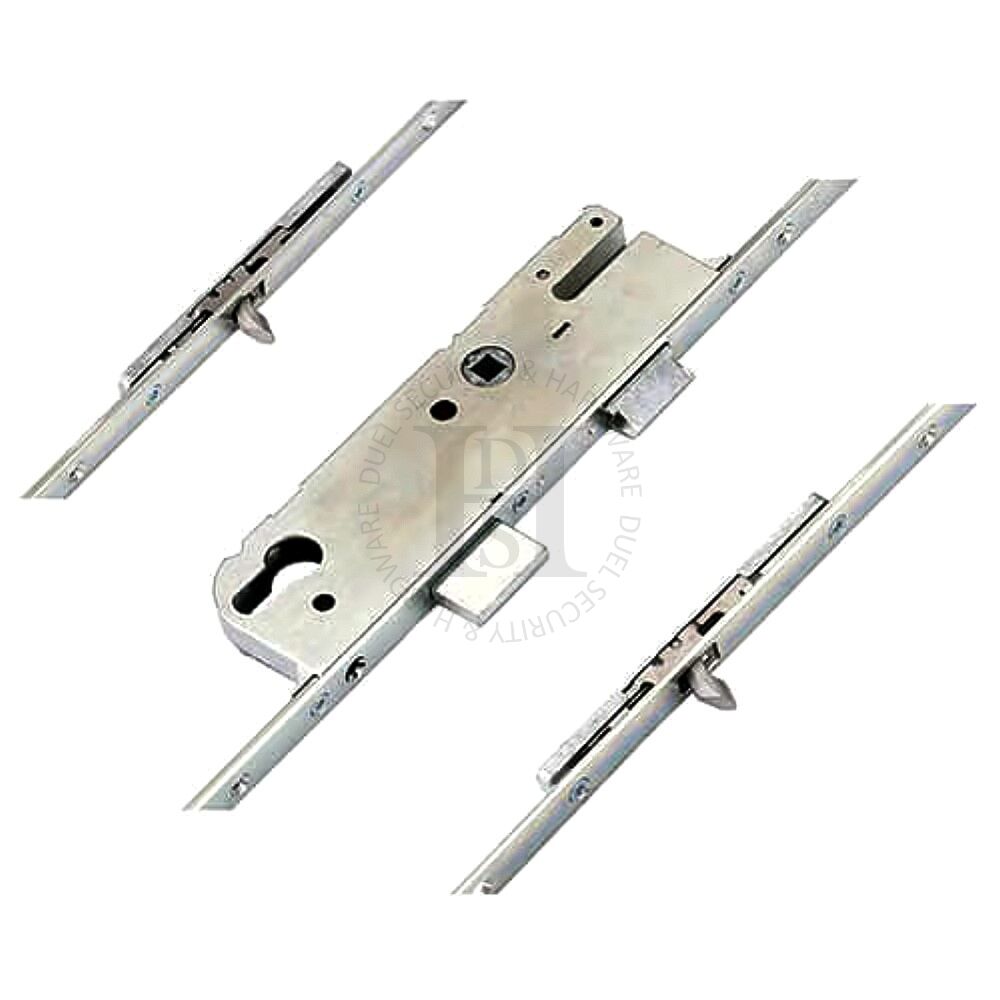

GU G1622722 2 Small Hookbolts 40mm Backset Multipoint Lock Mechanism

GU 1 piece, latch, deadbolt and 2 small hookbolts

Specification

• Operation - Lift Lever

Additional Information

• Distance between hooks - 1610mm
• GU locks are now manufactured with a new style  centre lock case
• The main difference betweeen old and new style is the distance between the latch and deadbolt, this will sometimes cause problems with the strike plates
• The distance between the latch and deadbolt on the new style centre lock case is 52mm
• The distance between the latch and deadbolt on the old style centre lock case is 62mm
• The other major difference is the difference in the height of the centre lock case, although this shouldn't cause any real problems when retrofitting
• Case height on the new style centre lock case is 195mm
• Case height on the old style centre lock case is 207mm

Latch Reversal

• Push flat bladed screwdriver into small rectangular slot above spindle and pull out at same time

Versions Available

• G1622722 - 40mm Backset - 92mm Centres - 16mm Flat Faceplate - 8mm Spindle
