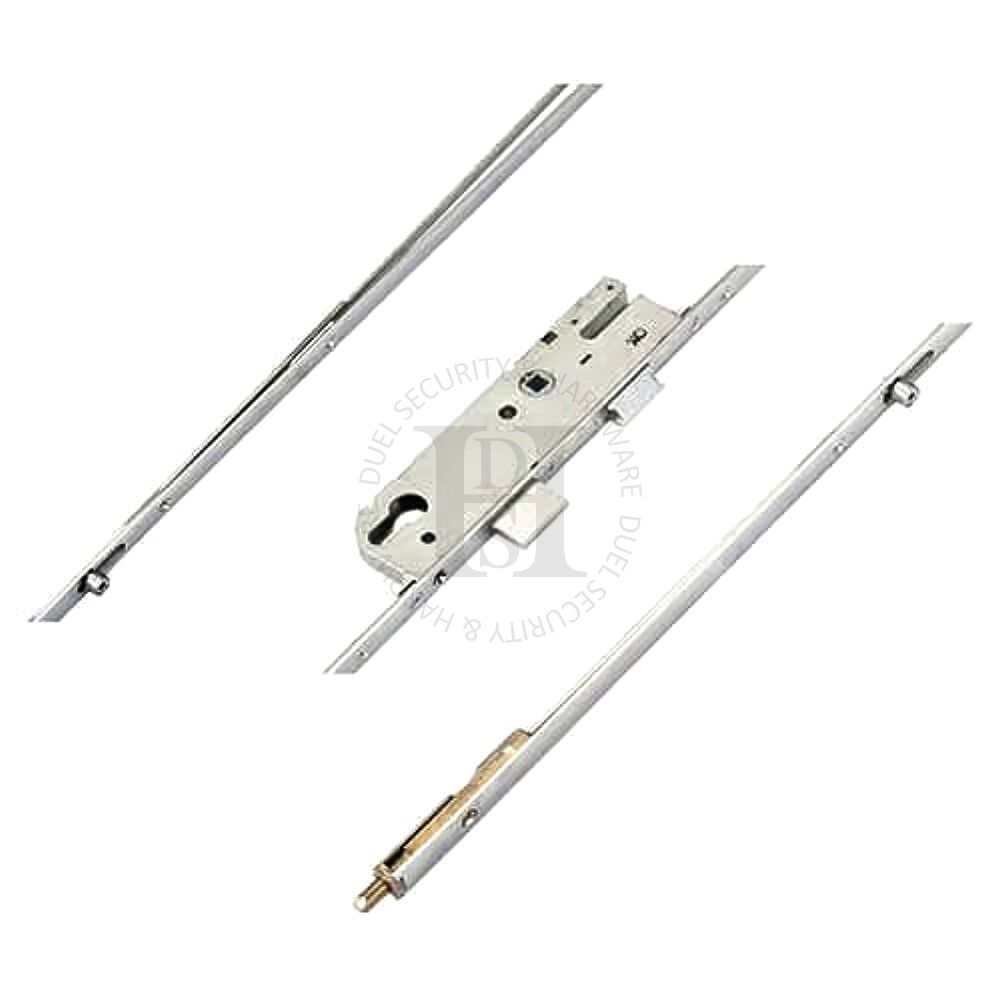

  • GU G1677629 2 Rollers & 1 Shootbolt Multipoint Lock Mechanism GU G1677629 2 Rollers & 1 Shootbolt Multipoint Lock Mechanism

GU G1677629 2 Rollers & 1 Shootbolt Multipoint Lock Mechanism

Availability: In stock

£52.27

Details



GU 1 piece, latc, deadbolt, 2 rollers , bottom shootbolt and attachment for top shootbolts



Specification

  • Operation - Lift lever



Additional Information

  • Distance between rollers - 1070mm
  • Top shootbolt supplied separately
  • GU locks are now manufactured with a new style centre lock case
  • The main difference between the old and new style is the distance betweeen latch and deadbolt, this will sometimes cause problems with the strike plates
  • The distance between the latch and deadbolt on the new style centre lock case is 52mm
  • The distance between the latch and deadbolt on the old style centre lock case is 62mm
  • The other major difference is the difference in the height of the centre lock case, although this shouldn't cause any real problems when retrofitting
  • Case height on the new style centre lock case is 195mm
  • Case height on the old style centre lock case is 207mm
  • Backset - 35mm
  • Centres - 92mm
  • Faceplate - Flat, 16mm
  • Spindle - 8mm

Additional Information

Technical Description N/A
SKU GU-G1677629
Barcode N/A
Brand N/A
