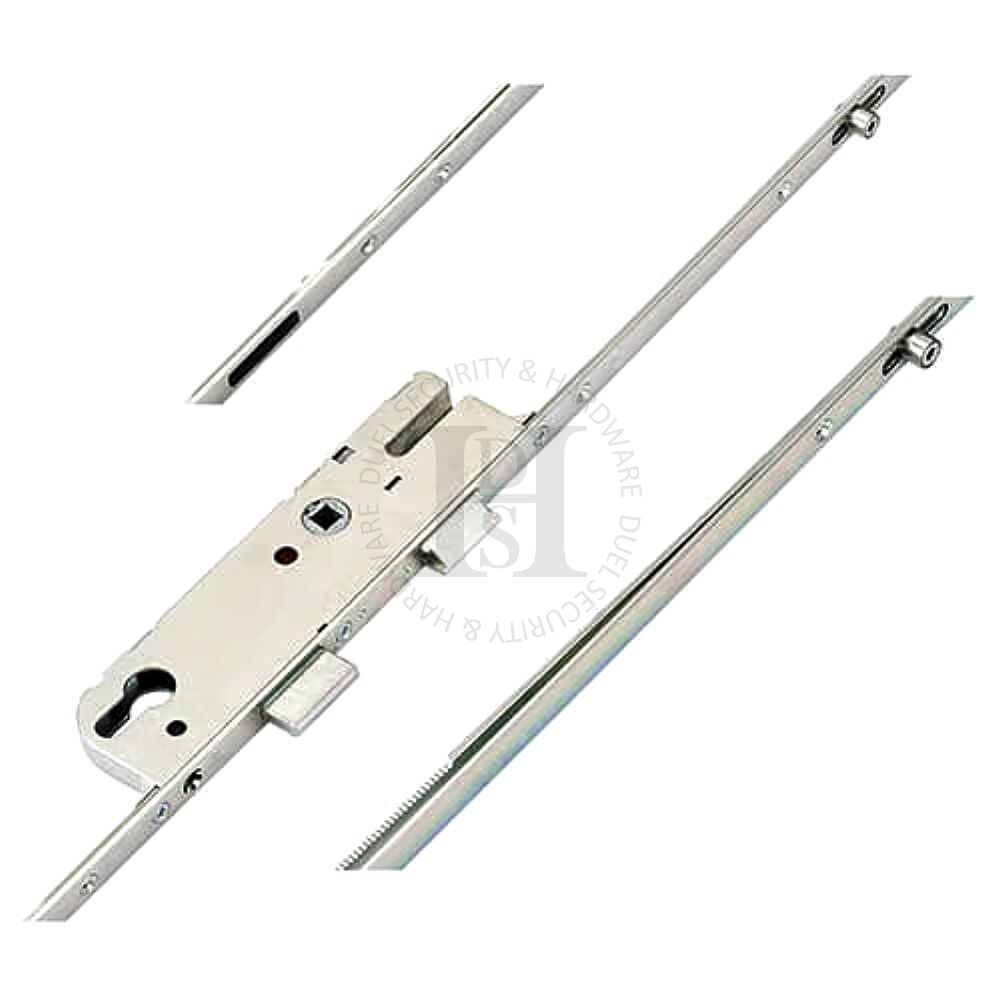

GU G18203 Multipiont Lock 35mm Backset

GU 1 piece, latch, deadbolt, 2 rollers and 2 shootbolts

Specification

• Lift Lever

Additional Information

• Distance between rollers - 689mm
• Gu locks are now manufactured with a new style centre lock case
• The main difference betwen old and new style is the distance between the latch and deadbolt, this will sometimes cause problems with the strike plates
• The distance between the latch and deadbolt on the new style centre lock case is 52mm
• The distance between the latch and deadbolt on the old style centre lock case is 62mm
• The other major difference is the difference in thhe height on the centre lock case, although this shouldn't cause any rela problems when retrofitting
• Case height on the new style centre lock case is 195mm
• Case hieght on the old style centre lock case is 207mm
• Old style case may also have cranked faceplates

Latch Reversal

• Push flat bladed screwdriver into small rectangular slot above spindle and pull latch out at the same time

Versions Available

• G18206 - 28mm Backset - 92mm Centres - 16mm Flat Faceplate - 8mm Spindle
