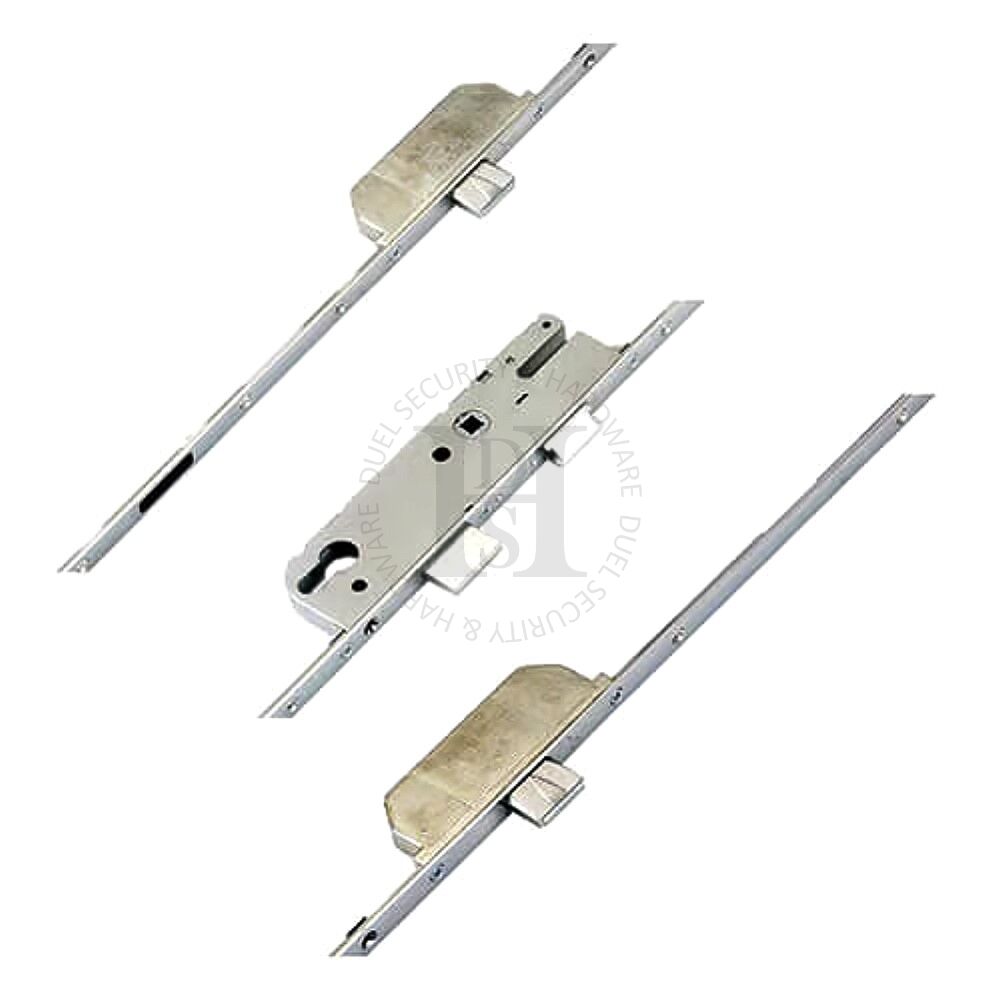

GU G1876122 3 Deadbolts 45mm Backset Multipoint Lock Mechanism

GU Secury Europa MR2 1 piece, latch and 3 Deadbolts

Specification

• Operation: Lift lever

Additional Information

• Distance between outer deadbolts - 1228mm
• GU locks are now manufactured with a new style centre case
• The main difference between the old and style is the distance between the latch and deadbolt, this will sometimes cause problems with the strike plates
• The distance between the latch and deadbolt on the new style lock case is 52mm
• The distance between the latch and deadbolt on the old style lock case is 62mm
• The other major difference is the difference in the height of the lock case, although this shouldn't cause any real problems when retrofitting
• Case height on the new style lock case is 195mm
• Case height on the old style lock case is 207mm

Latch Reversal

• Push flat bladed screwdriver into small rectangular slot above spindle and pull latch out at same time

Versions Available

• G1876122 - 45mm Backset - 92mm Backset - 16mm Flat Faceplate - 8mm Spindle
