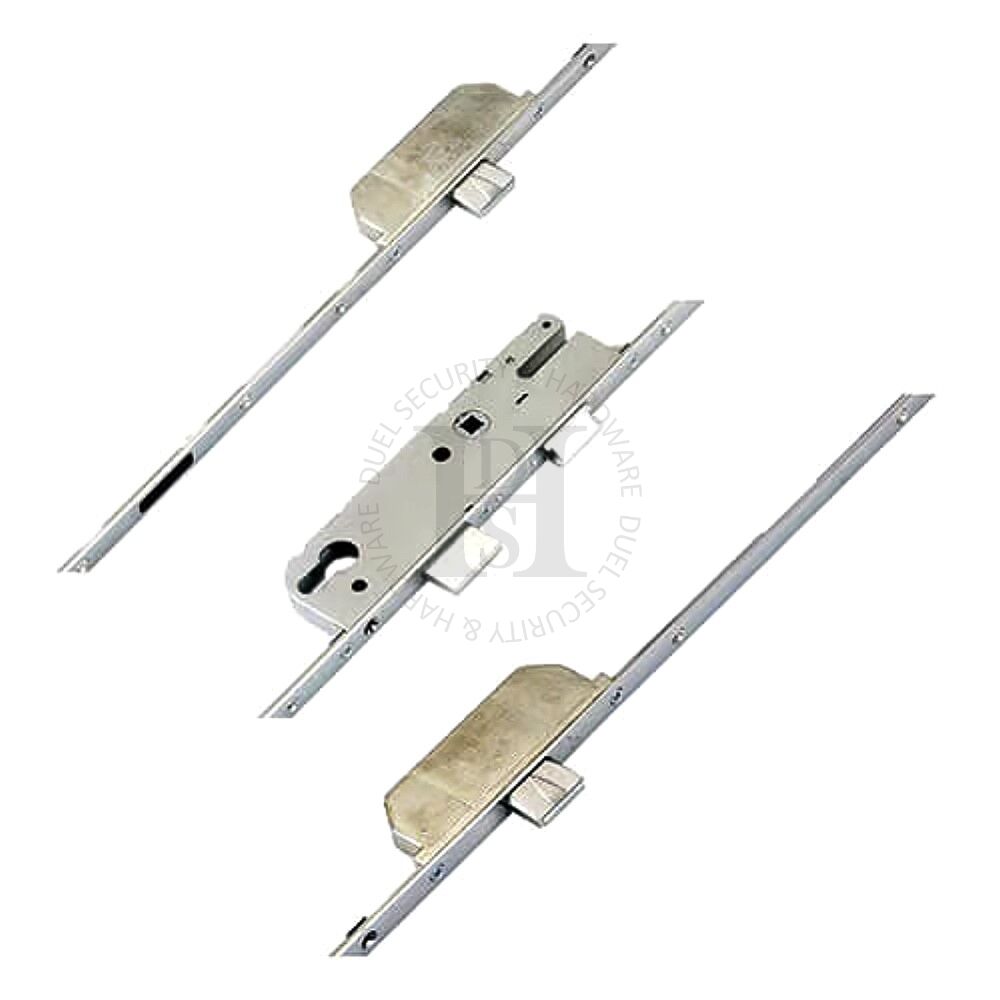

GU G1876922 Europa Latch 3 Deadbolts Lift Lever 35mm Backset Multipoint Door Lock Mechanism

This GU G1876922 Europa Latch 3 Deadbolts Lift Lever 35mm Backset Multipoint Door Lock Mechanism features 3 Deadbolts & 1 Latch.

To open the lock, unlock the door by turning the key, push down the handle to disengage the locking points. Use handle to withdraw the latch.

Identifying a GU lock is straightforward as GU stamp their logo on the faceplate of their locks. However, if you have an old door to repair, the GU lock may be the old, original style, rather than the new version.

GU make their Europa range of door locks with hooks, deadbolts or rollers. .

New style GU locks can be differentiated from their old style equivalents by the shape at the top of the gearbox. Old style locks have the top corner removed, whereas new versions feature a vertical groove to help with bolts for handles. The two gearboxes are not compatible, so a new style gearbox will not fit on an old style multipoint lock. Fast locking Europa Plus gearboxes were not available in the old style locks and differ slightly to the other operation gearboxes, as the top groove is actually a separate, elongated hole and top groove.

GU multipoint lock gearboxes feature a latch and deadbolt and measure 191mm high (excluding the fixing lugs) by the backset + 16mm wide. The latch is 32mm high, the deadbolt measures 35mm high and there is 54mm from the bottom of the latch to the top of the deadbolt.

GU gearboxes are fixed to their faceplates with 3 screws. The distance from the top to the middle screw is 108mm, while the middle screw to bottom screw is 92mm.

Always allow 2mm when measuring your backset and the faceplate is still attached to the gearbox.
