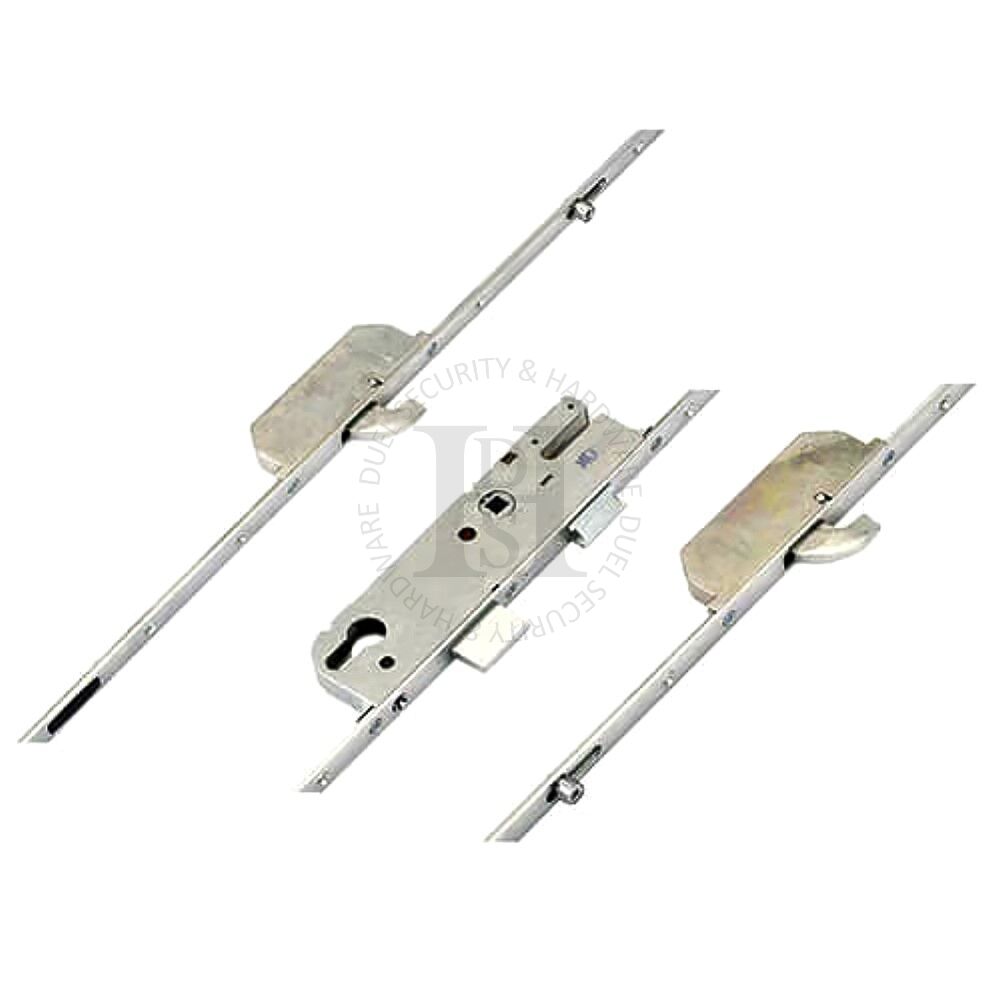

GU G1956922 35mm Backset 2 Hookbolts & 2 Rollers Multipoint Lock Mechanism

GU NL Outboard Rollers 1 piece, latch, deadbolt, 2 hookbolts and 2 rollers

Specification

• Operation - Split spindle nightlatch

Additional Information

• Distance between the hookbolts - 1228mm
• Distance between the outer rollers - 1578mm
• GU Locks are now manufactured with a new style centre lock case
• The main difference betweeen old and new style is the distance between the latch and deadbolt, this will sometimes cause problems with the strike plates
• The distance between the latch and deadbolt on the new style centre lock case is 52mm
• The distance between the latch and deadbolt on the old style centre lock case is 62mm
• The other major difference is the difference in the height of the centre lock case, although this shouldn't cause any real problems when retrofitting
• Case height on new style centre lock case is 195mm
• Case height on old style centre lock case is 207mm
• Backset - 35mm
• Centres - 92mm
• Faceplate - Flat, 16mm
• Spindle - Split, 8mm
